03 — Ways of Seeing (2)

class: center middle main-title section-title-1

# .kjh-yellow[Ways of]<br /> .kjh-lblue[Seeing (2)]

.class-info[

**Week 03**

.light[Kieran Healy<br>
Duke University, Spring 2023]

]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-lblue[Pre-Attentive Processing]

---
layout: false

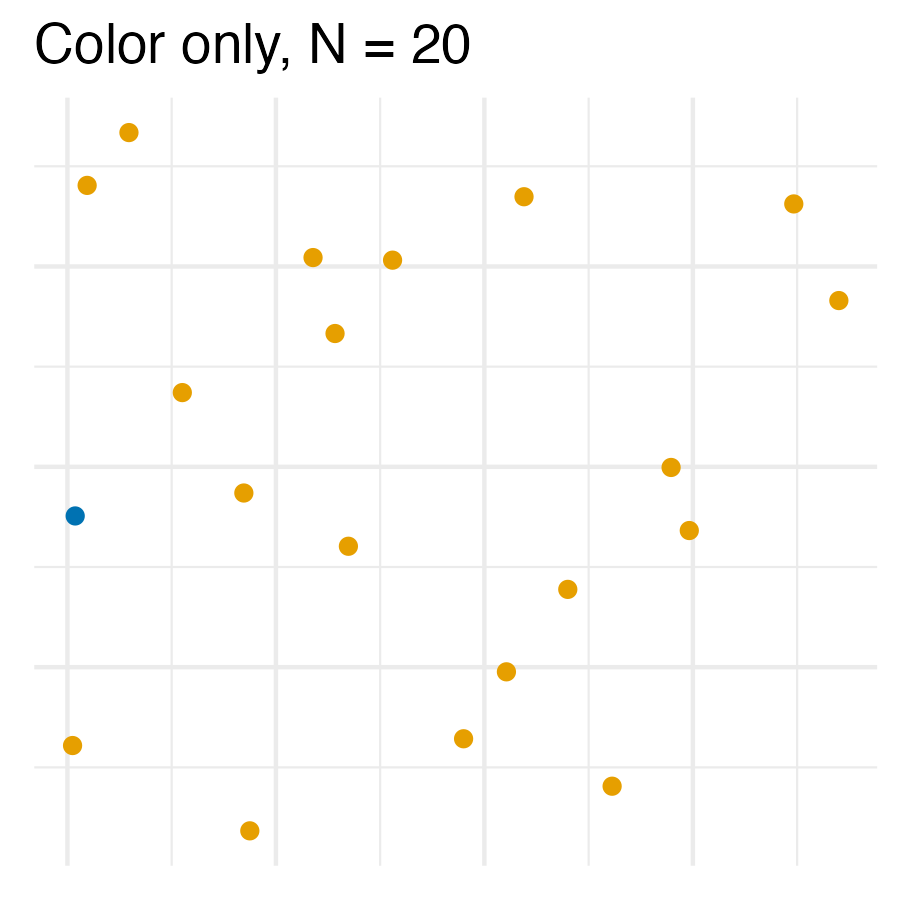

.center[![:scale 50%](img/01_preattentive_col_20.png)]

.right.w90.small[]

---
layout: false

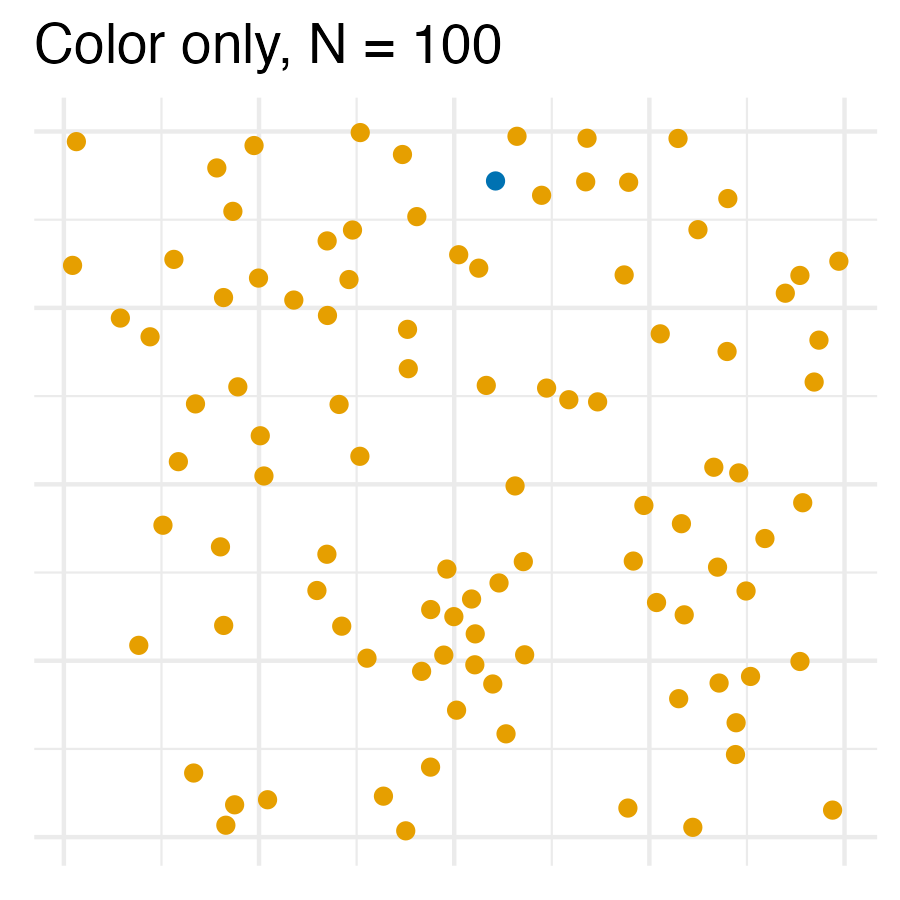

.center[![:scale 50%](img/01_preattentive_col_100.png)]

.right.w90.small[]

---
layout: false

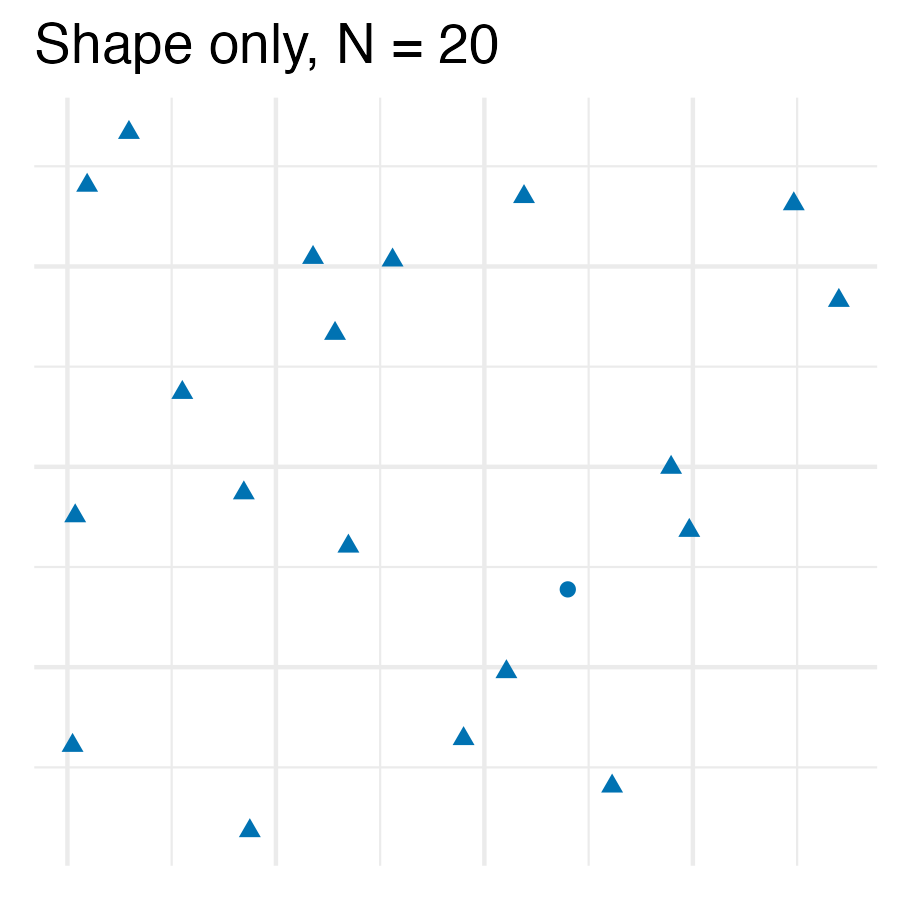

.center[![:scale 50%](img/01_preattentive_shp_20.png)]

.right.w90.small[]

---
layout: false

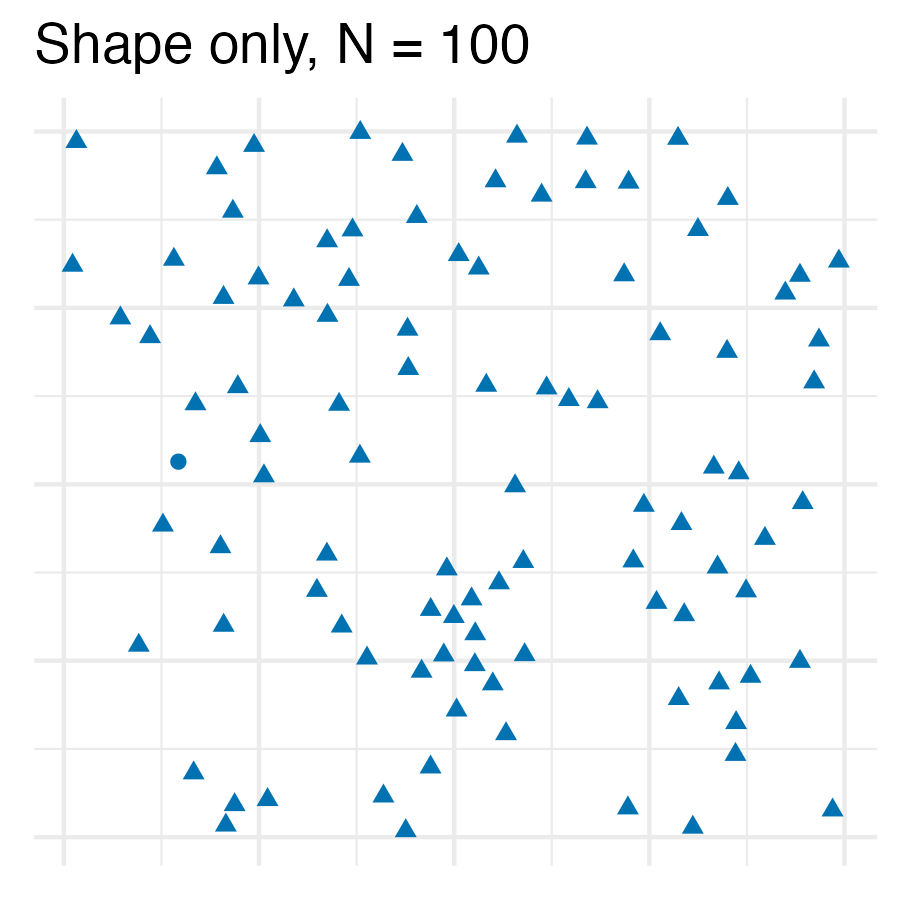

.center[![:scale 50%](img/01_preattentive_shp_100.png)]

.right.w90.small[]

---
layout: false

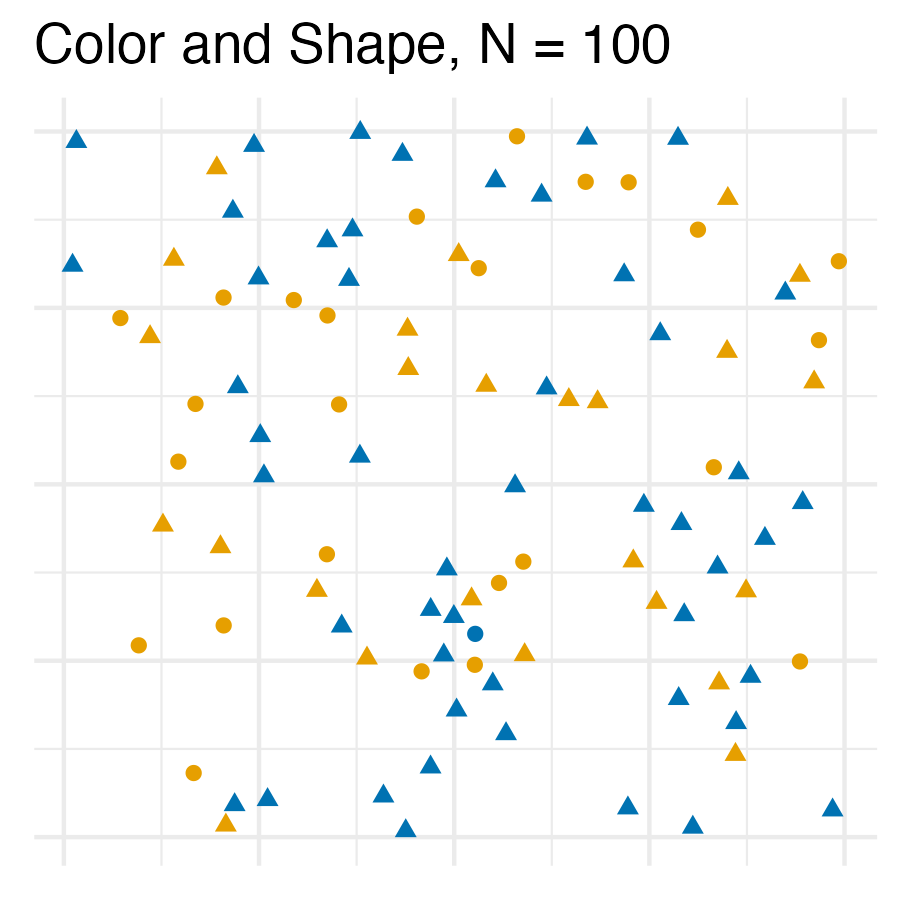

.center[![:scale 50%](img/01_preattentive_col_shp_100.png)]

.right.w90.small[]

---
layout: false

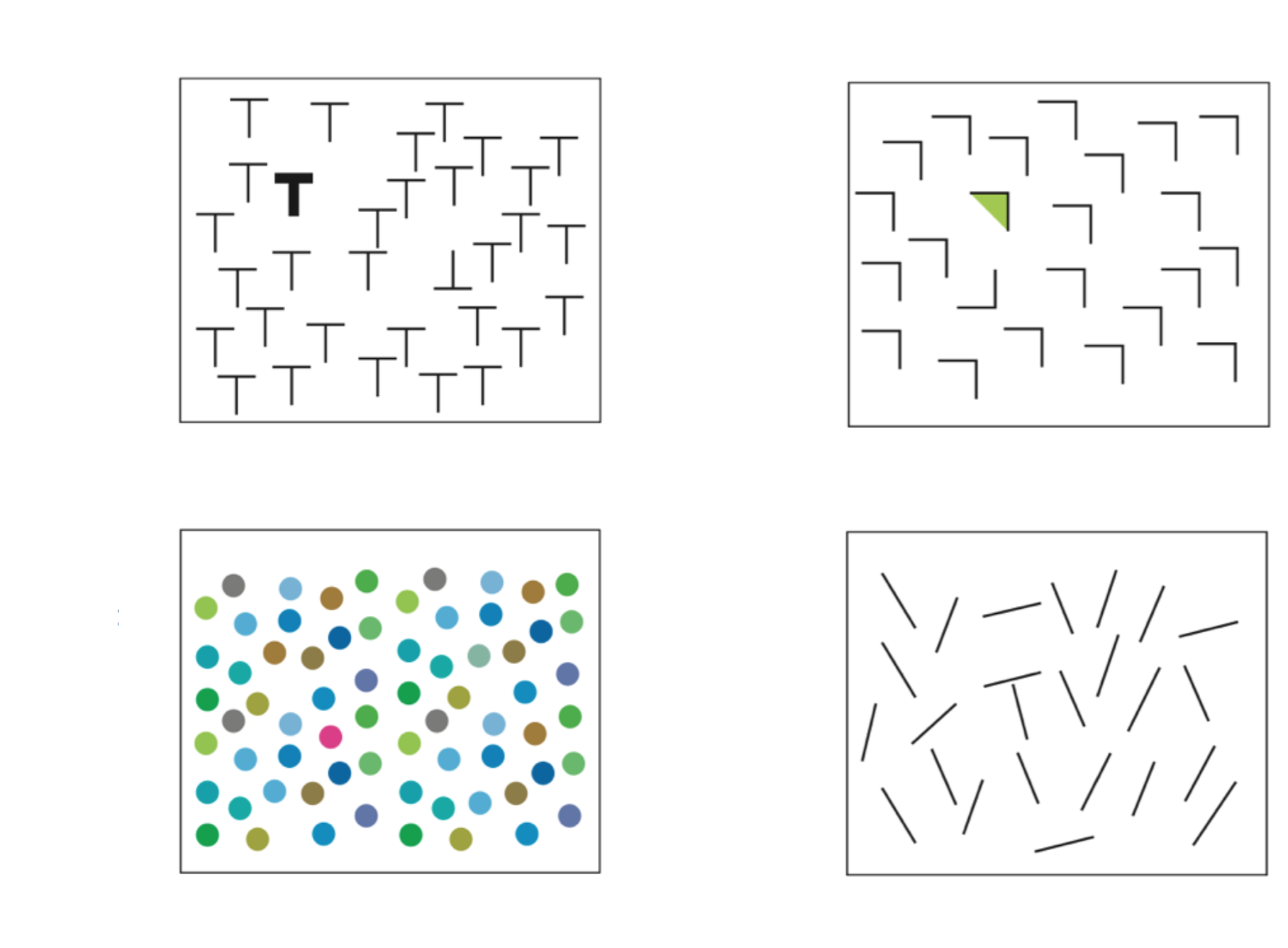

.center[![:scale 68%](img/01_preattentive_easy_hard_blank.png)]

.right.w90.small[Colin Ware]

---
layout: false

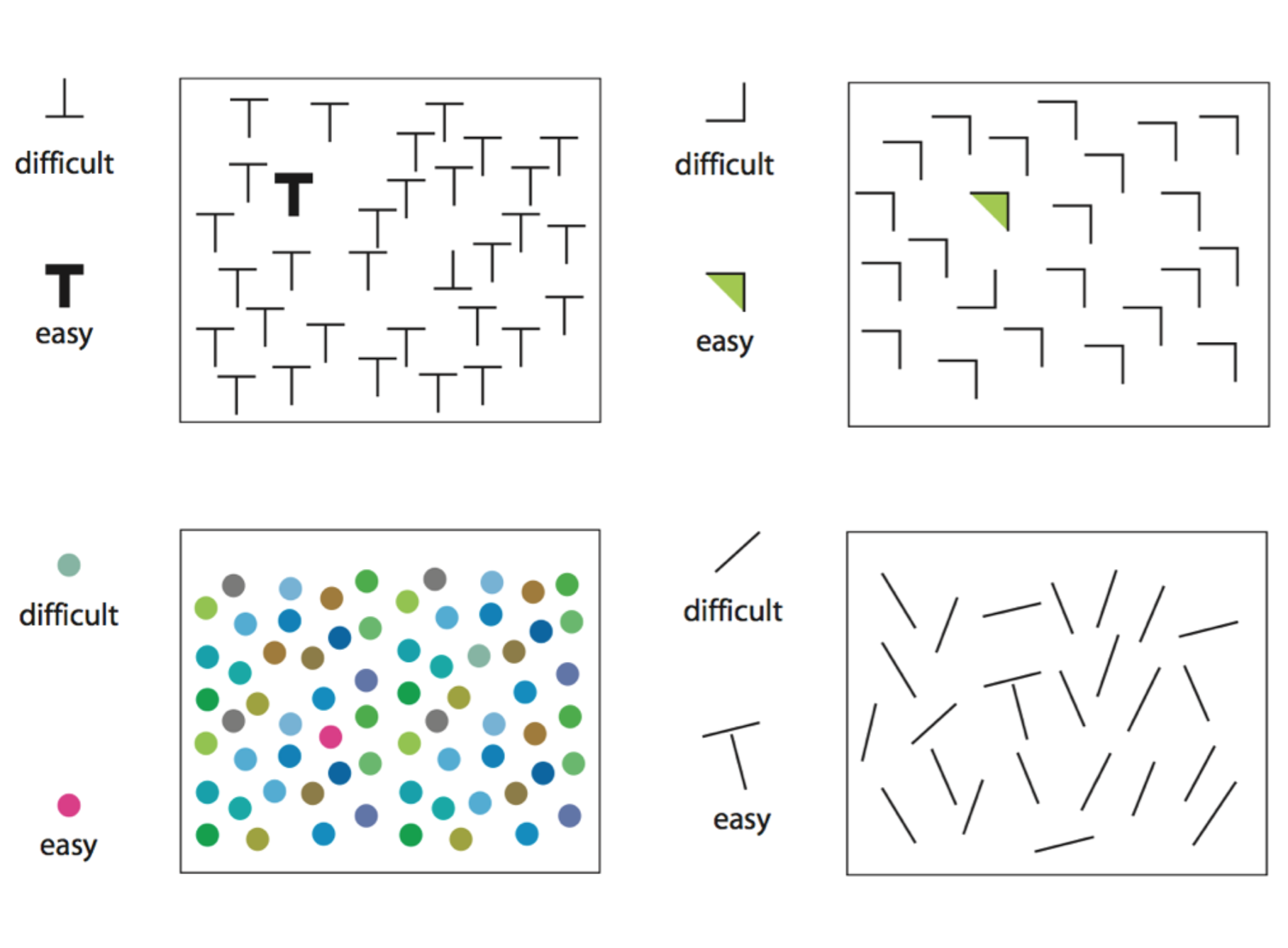

.center[![:scale 68%](img/01_preattentive_easy_hard.png)]

.right.w90.small[Colin Ware]

---
layout: false

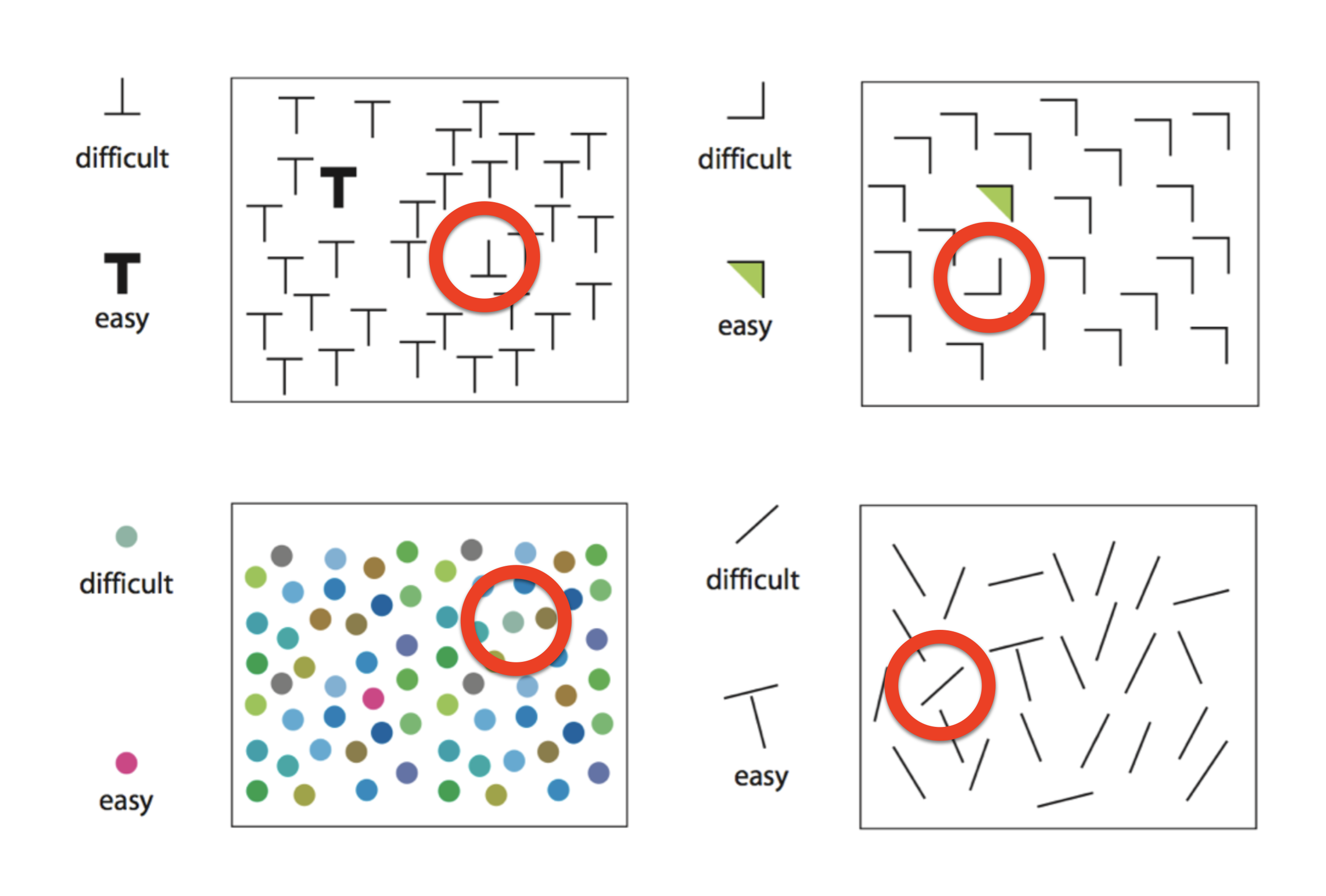

.center[![:scale 75%](img/01_preattentive_easy_hard_labeled.png)]

.right.w90.small[Colin Ware]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-lblue[&nbsp; &nbsp; Gestalt Inferences <br />and Design]

---
layout: false

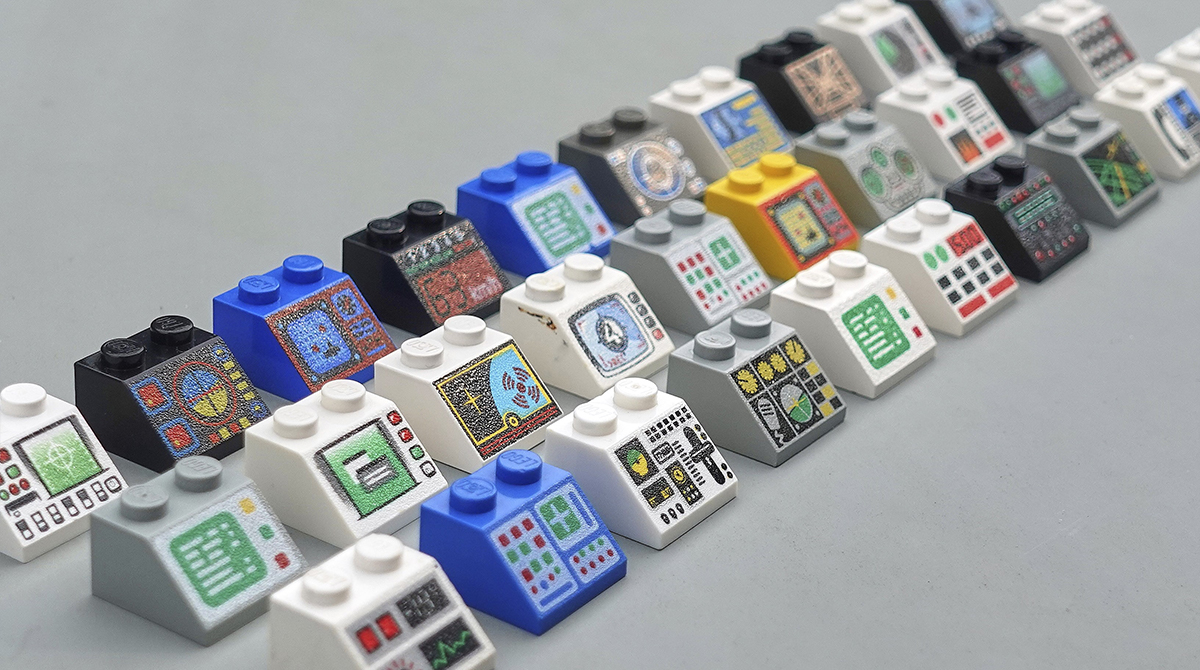

.center[![:scale 80%](img/01_gestalt_cave_interfaces.png)]

.right.w90.small[George Cave]

---
layout: false

.center[![:scale 70%](img/01_gestalt_cave_codings.png)]

.right.w90.small[George Cave]

---
layout: false

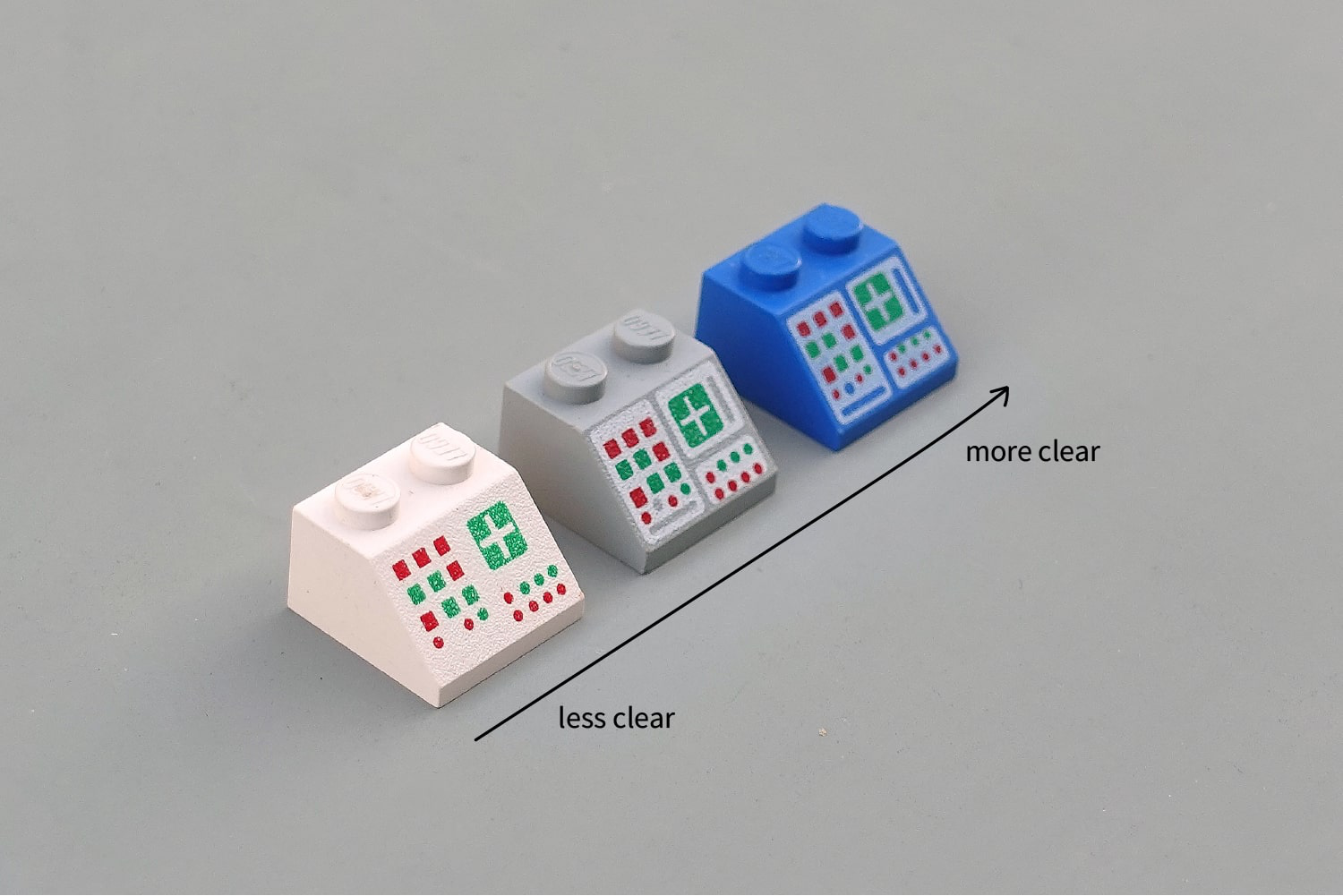

.center[![:scale 70%](img/01_gestalt_cave_clarity.png)]

.right.w90.small[George Cave]

---
layout: false

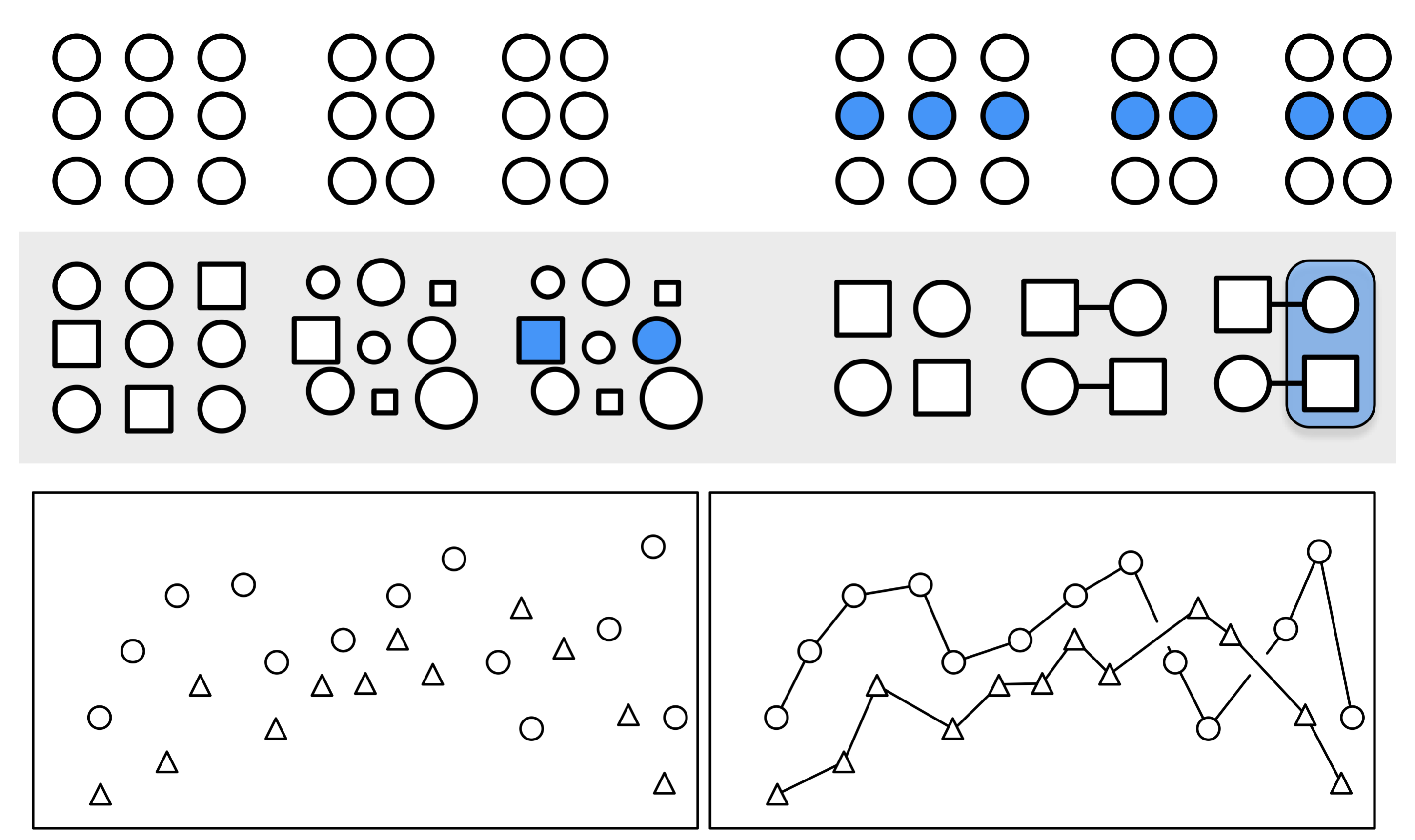

.center[![:scale 90%](img/01_gestalt_comparisons.png)]

.right.w90.small[]

---

class: center middle main-title section-title-1

# .huge.squish4.kjh-lblue[Encodings or .kjh-yellow[mappings]<br />for data]

---
layout: false
class: main-title main-title-inv

# .middle.squish4.huge.kjh-orange[What's a graph, anyway?]

---

.center[![:scale 70%](img/01_cleveland_encode.png)]

---
layout: false

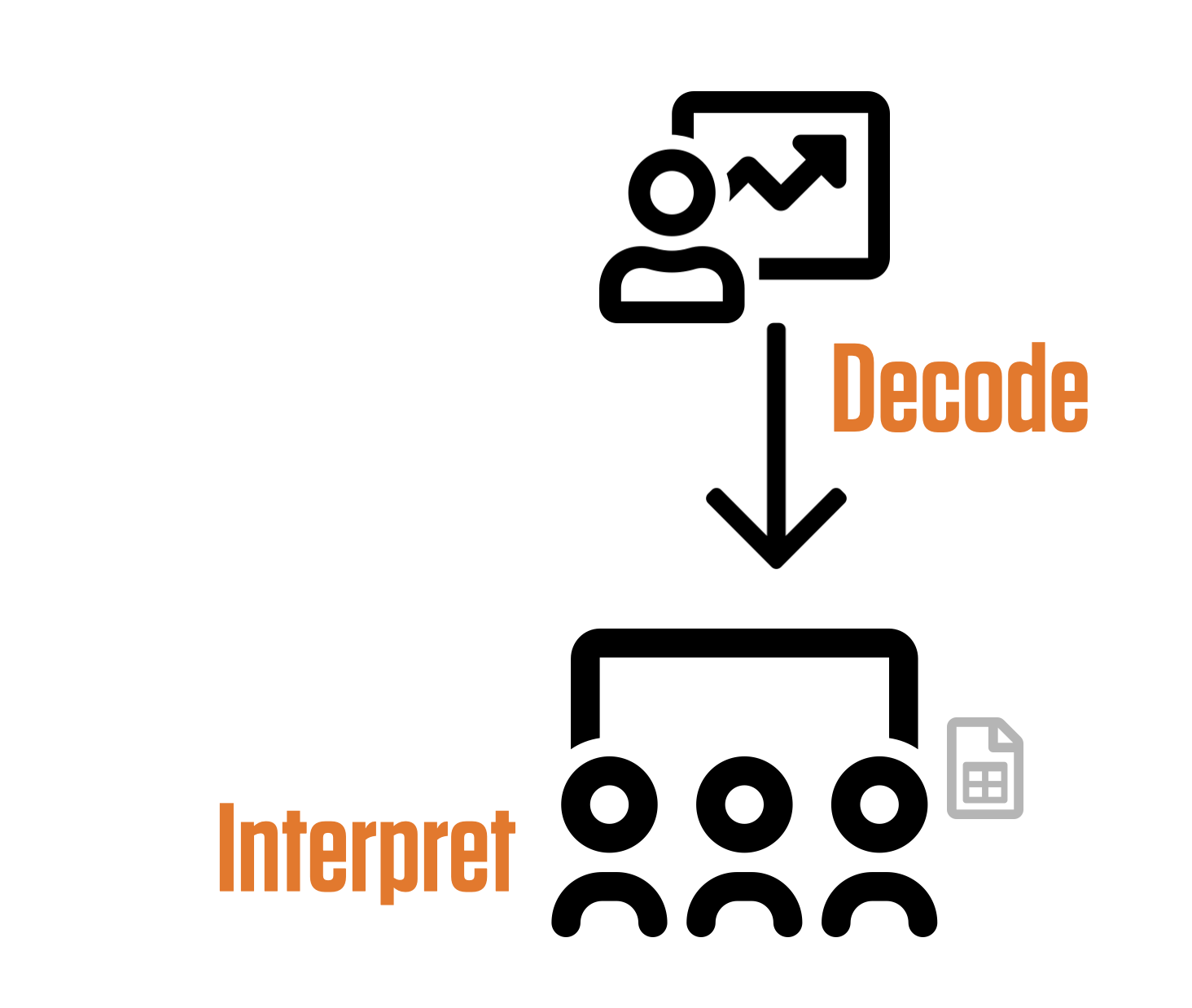

.center[![:scale 60%](img/01_cleveland_decode.png)]

.right.w90.small[]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.squish4.kjh-yellow[Visual tasks in<br /> .kjh-lblue[decoding graphs]]

---

layout: false

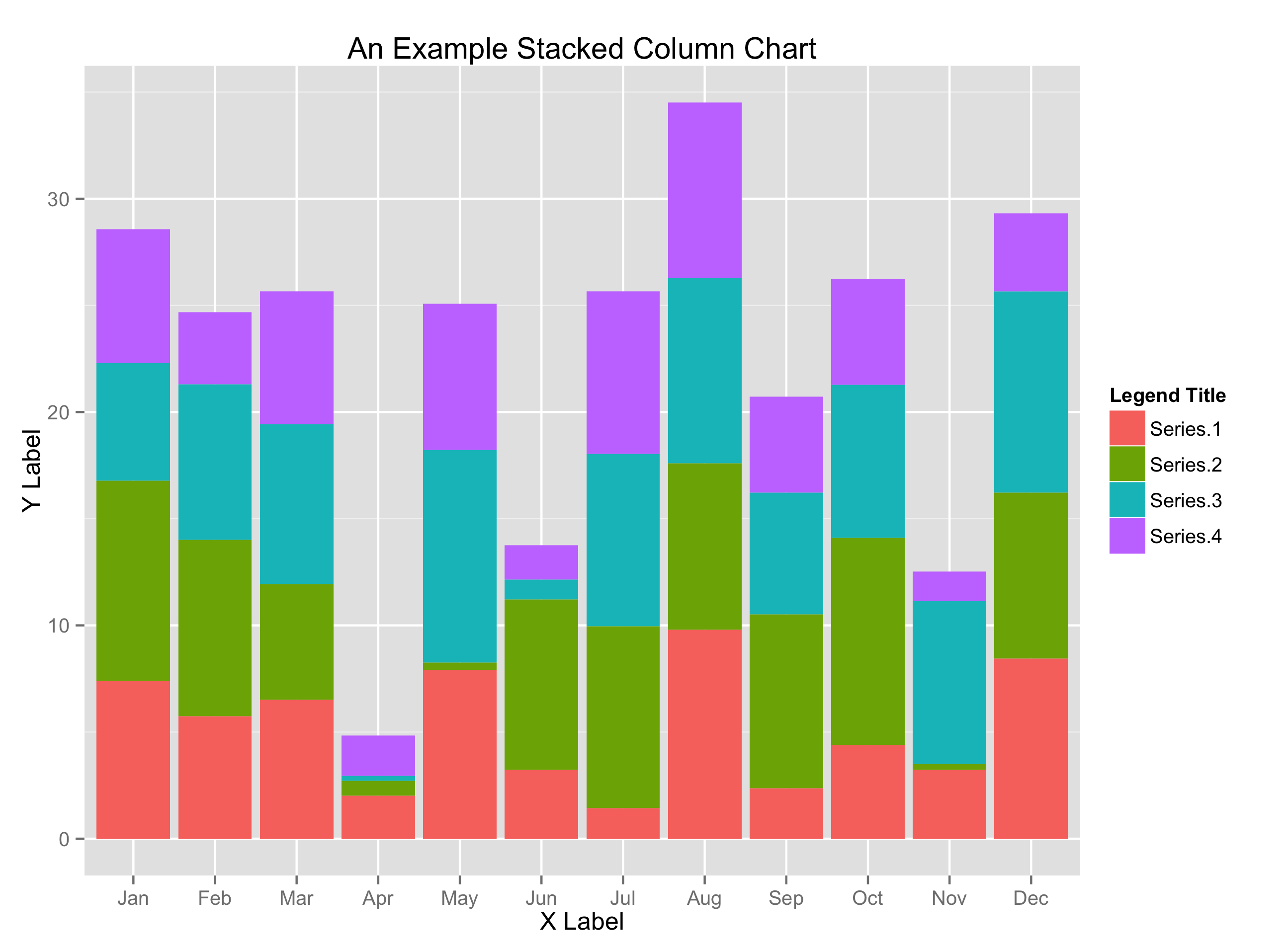

.center[![:scale 70%](img/01_cleveland_stacked_column.png)]

---
layout: false

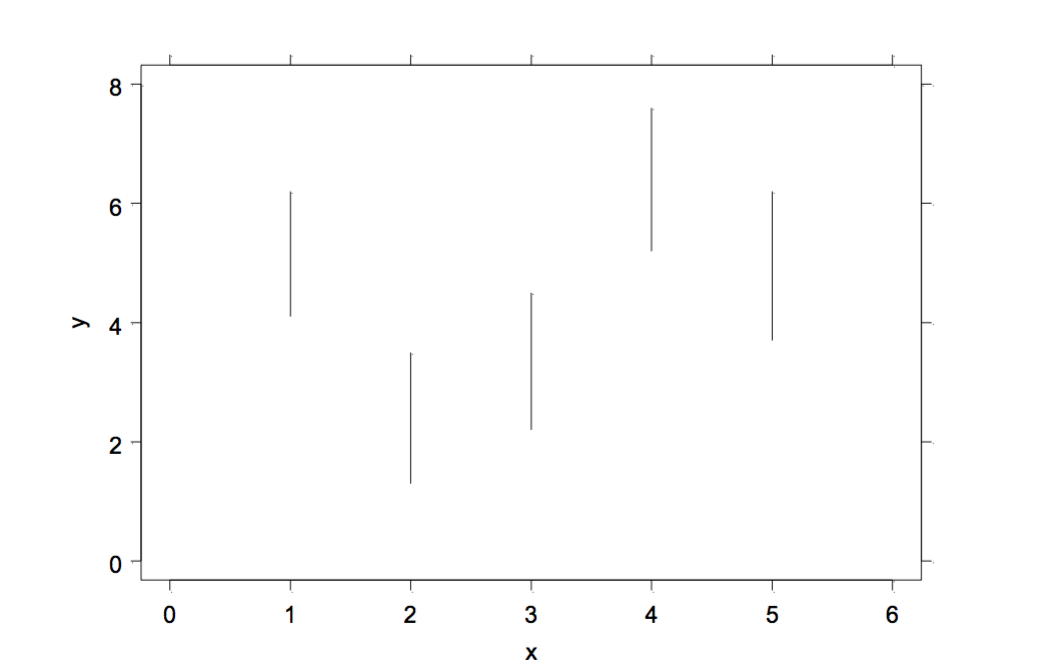

.center[![:scale 70%](img/01_cleveland_length_baseline.png)]

.right.w90.small[William Cleveland]

---
layout: false

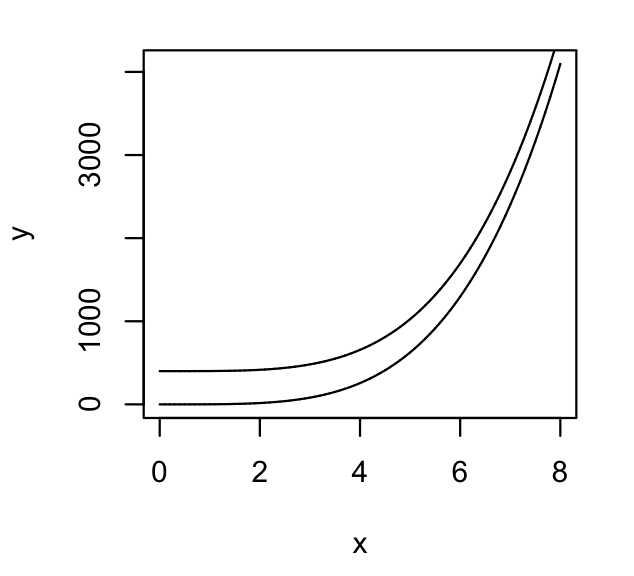

.center[![:scale 60%](img/01_cleveland_curves_1.png)]

.right.w90.small[William Cleveland]

---
layout: false

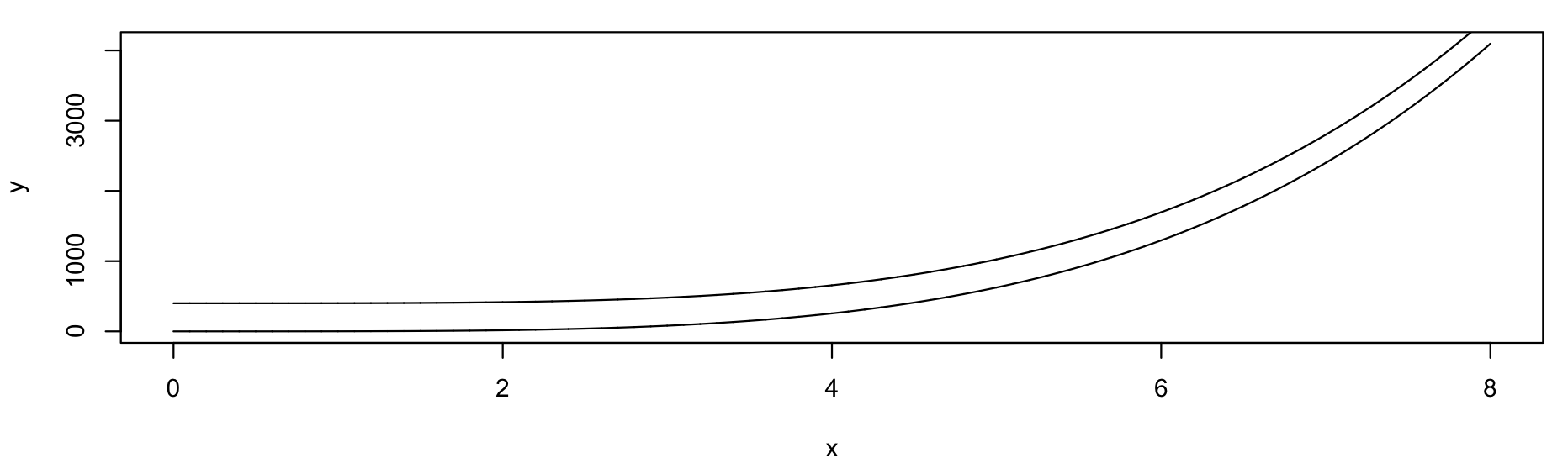

.center[![:scale 90%](img/01_cleveland_curves_2.png)]

.right.w90.small[William Cleveland]

---
layout: false

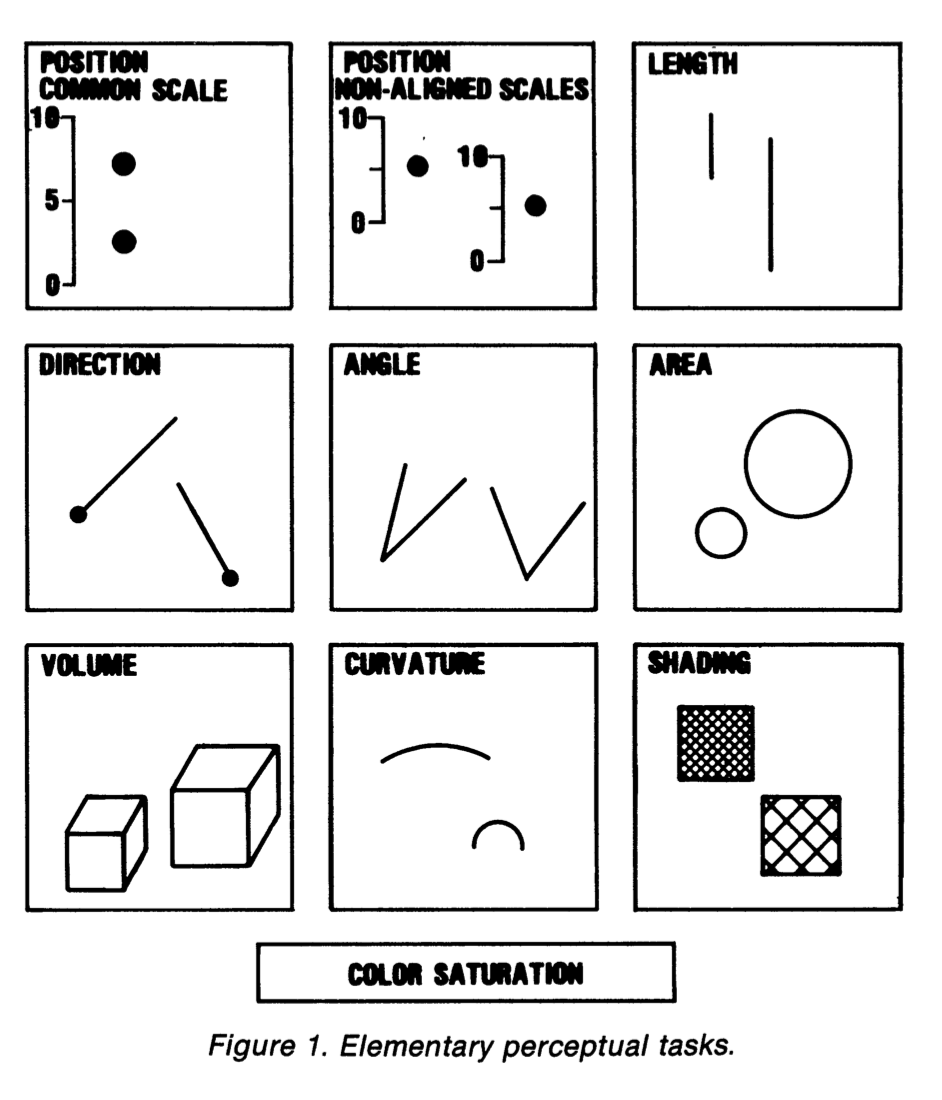

.center[![:scale 40%](img/01_cleveland_tasks.png)]

.right.w90.small[William Cleveland]

---
layout: false

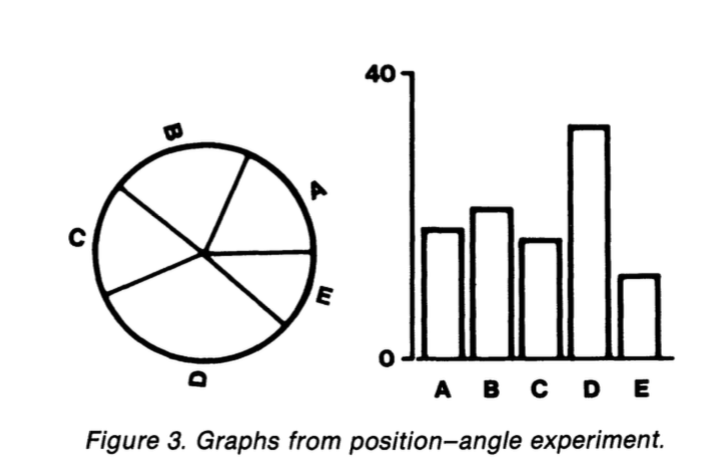

.center[![:scale 70%](img/01_cleveland_pie_bar.png)]

.right.w90.small[William Cleveland]

---
layout: false

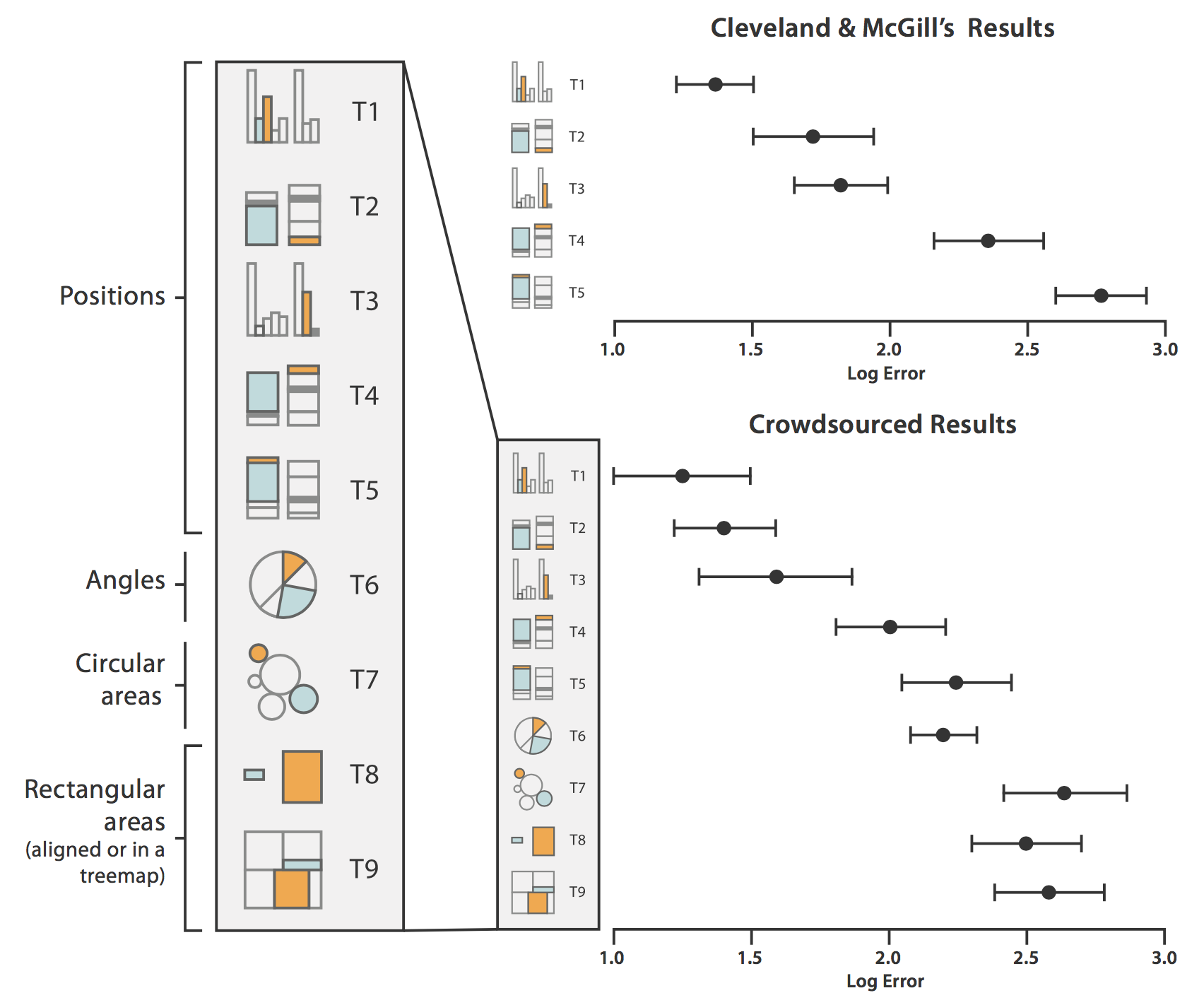

.center[![:scale 55%](img/01_cleveland_bostock_summary.png)]

.right.w90.small[William Cleveland and Michael Bostock]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-yellow[A rough hierarchy<br /> .kjh-lblue[of mappings for data]]

---
layout: false

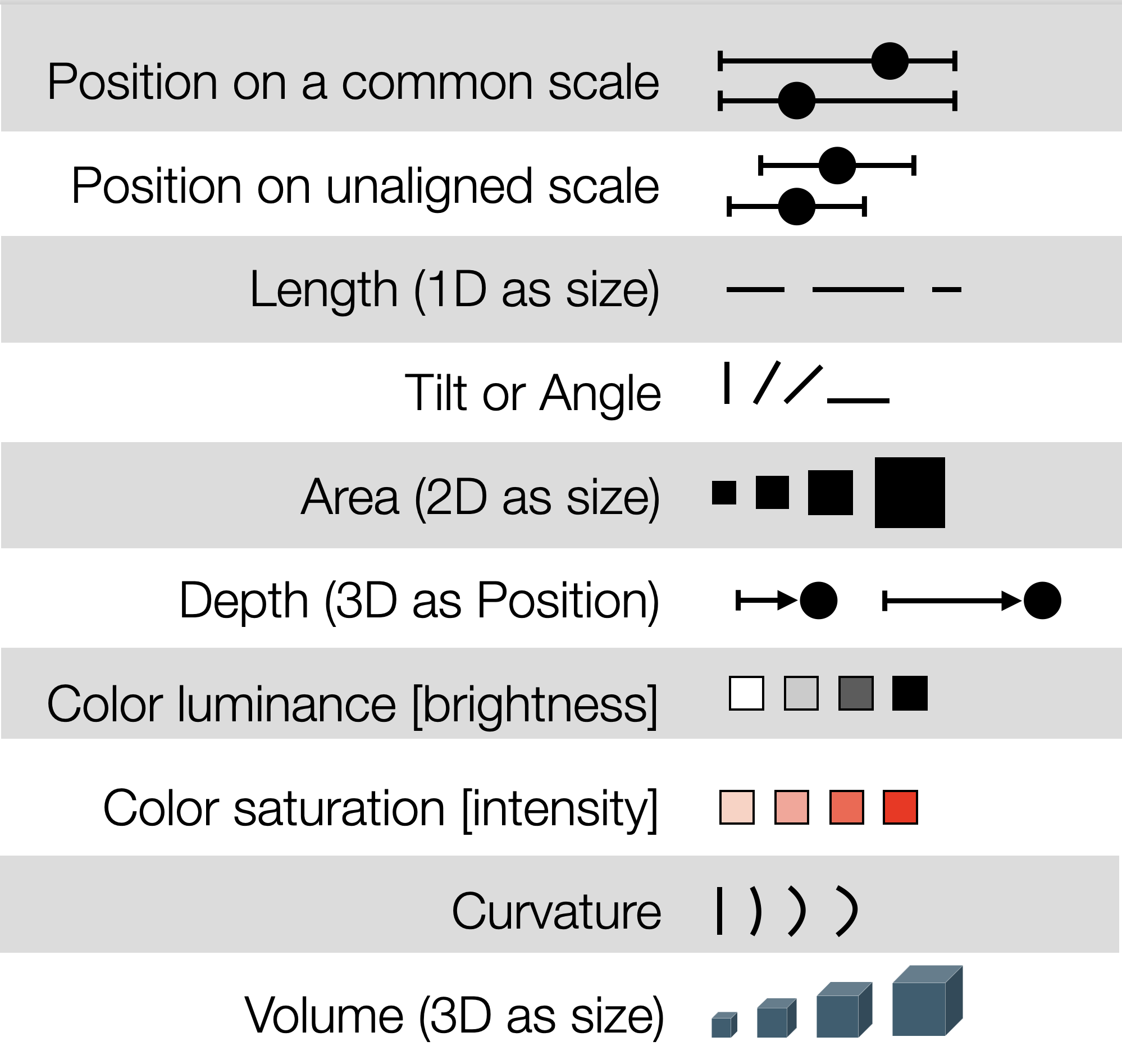

.center[![:scale 50%](img/01_munzer_mappings_continuous.png)]

.right.w90.small[Tamara Munzer]

---
layout: false

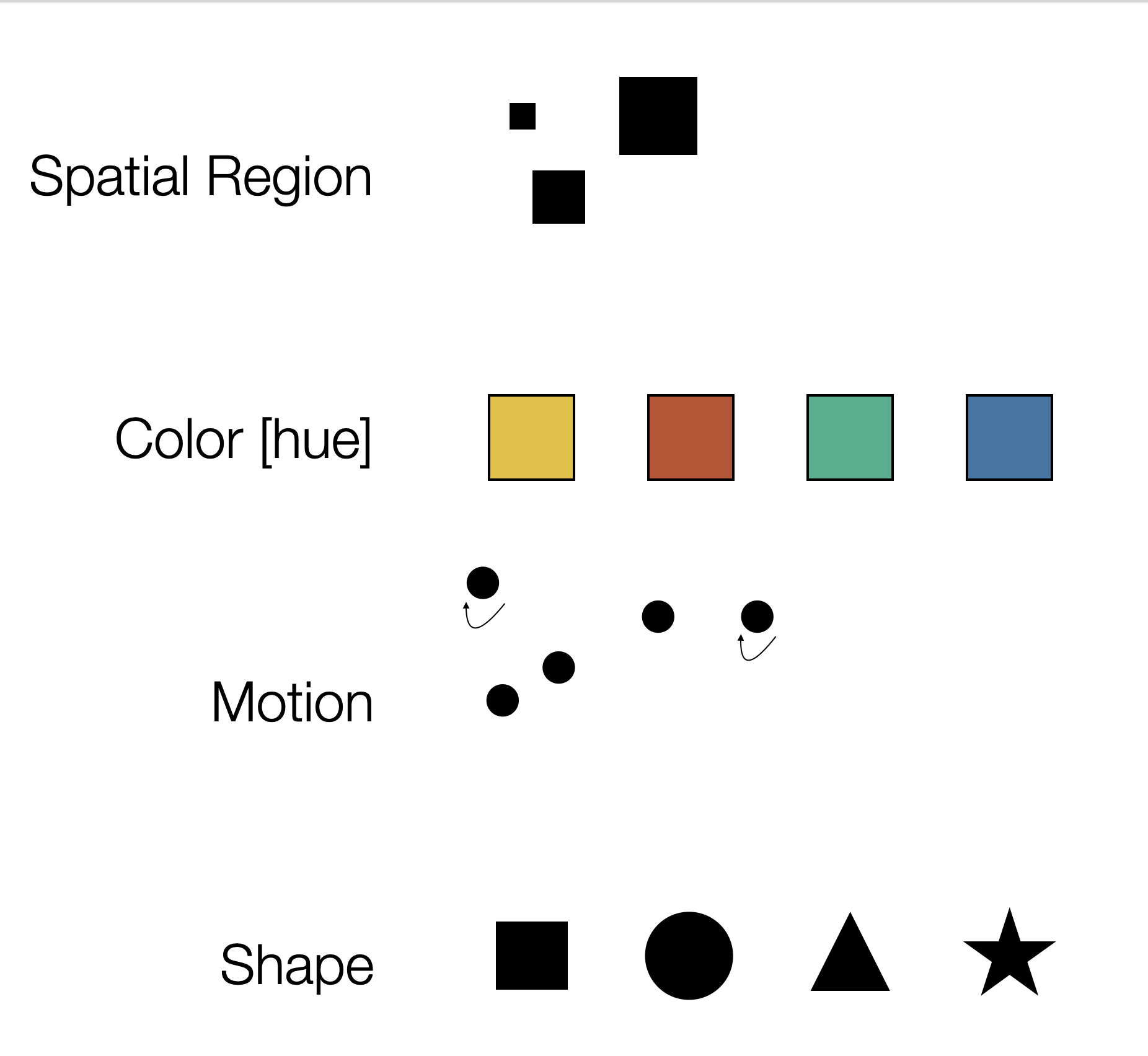

.center[![:scale 50%](img/01_munzer_mappings_categorical.png)]

.right.w90.small[Tamara Munzer]

---

class: center middle main-title section-title-1

# .huge.squish4.kjh-lblue[Honesty & .kjh-yellow[judgment]]

---
layout: false

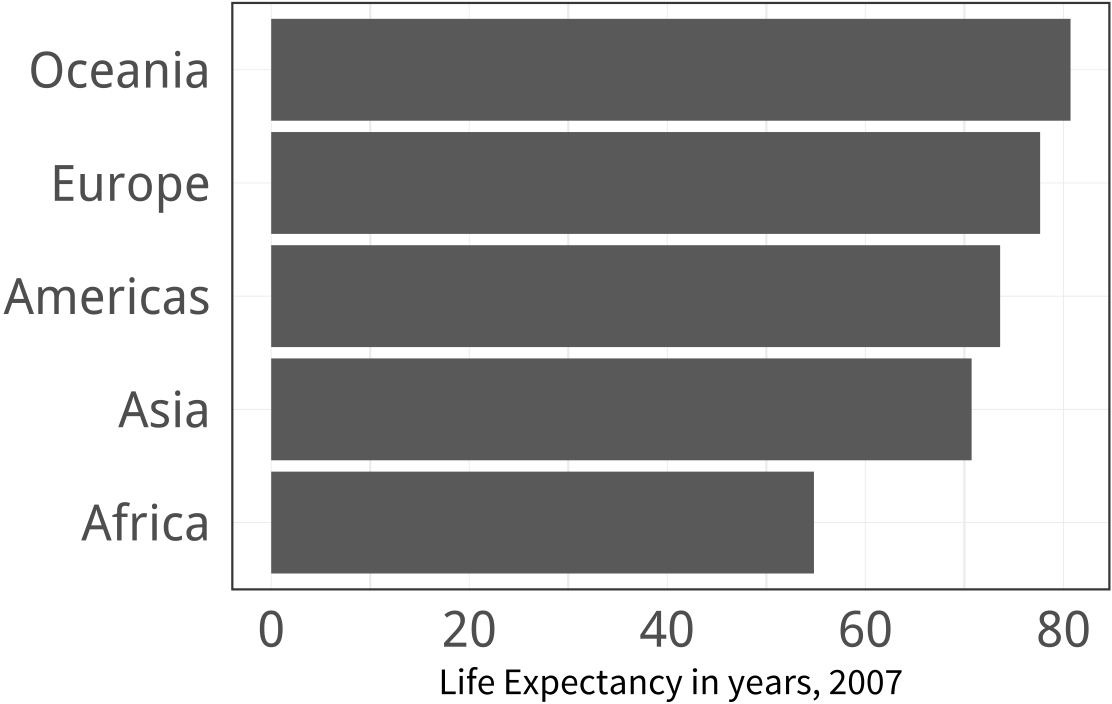

.center[![:scale 85%](img/01_honesty_bar_1.png)]

.right.w90.small[]

---
layout: false

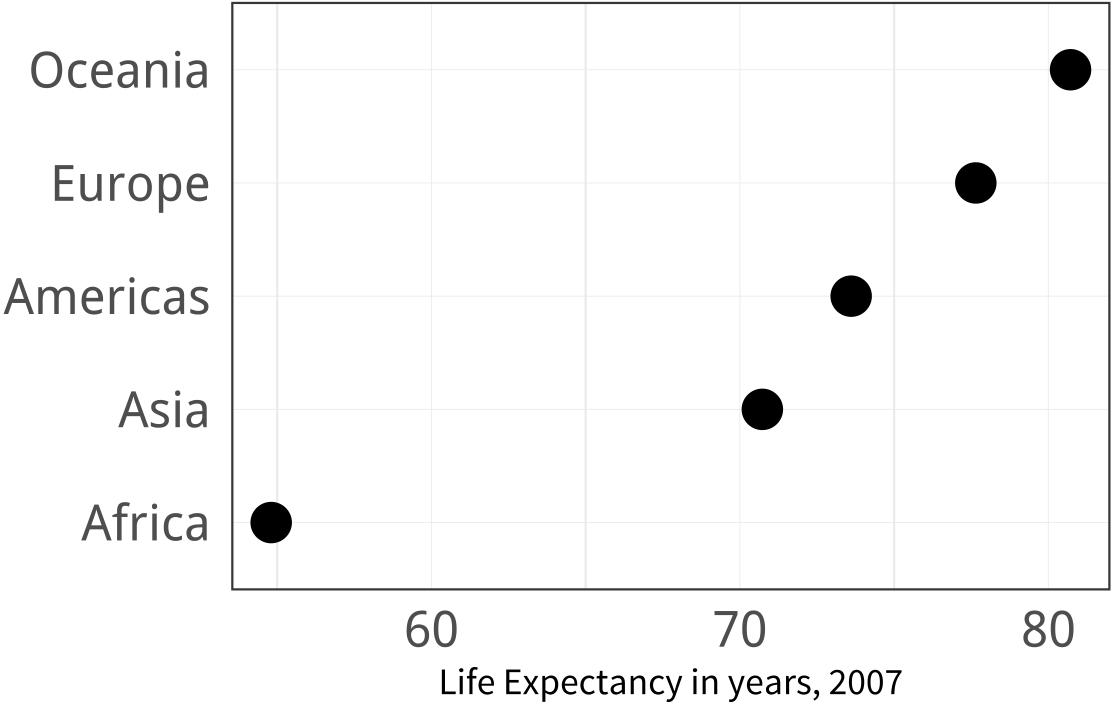

.center[![:scale 85%](img/01_honesty_bar_2.png)]

.right.w90.small[]

---
layout: false

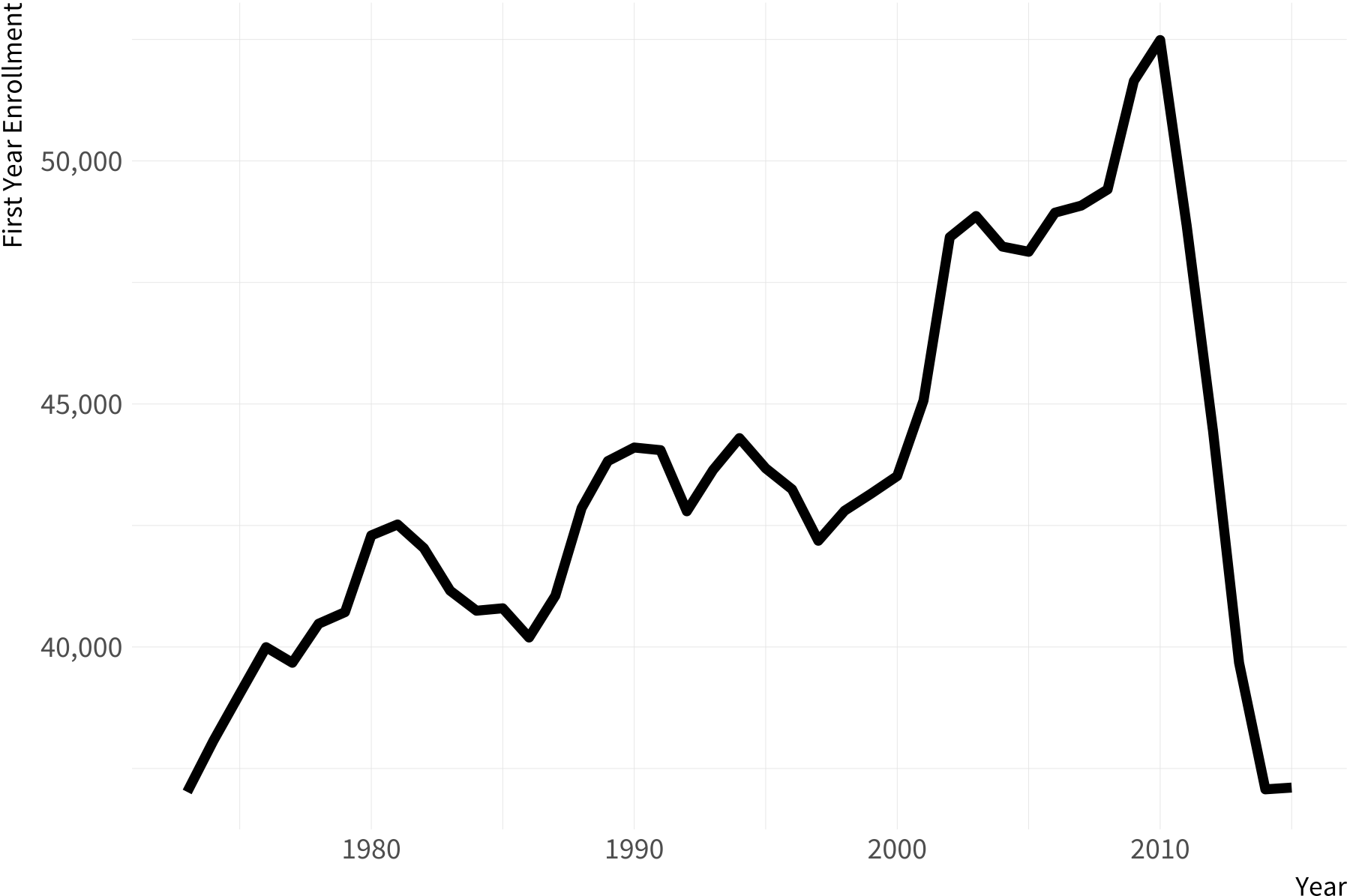

.center[![:scale 80%](img/01_honesty_law_1.png)]

.right.w90.small[]

---
layout: false

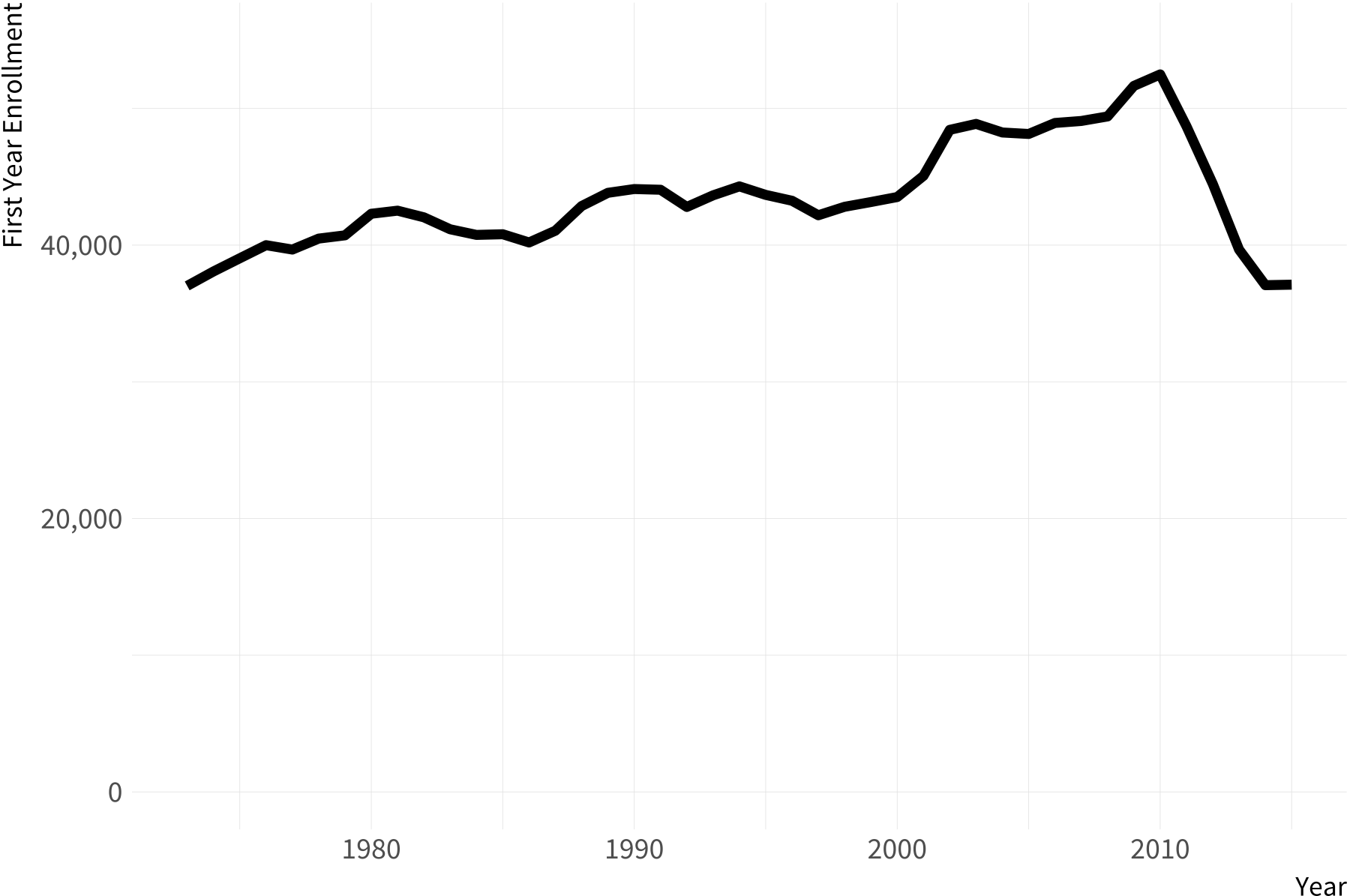

.center[![:scale 80%](img/01_honesty_law_2.png)]

.right.w90.small[]

---
layout: false
class: main-title main-title-inv

## .middle.squish4.huge[CLARITY]

--

## .middle.squish4.huge.kjh-lblue[HONESTY]

--

## .middle.squish4.huge.kjh-pink[TRUTH]

---

layout: false
class: main-title main-title-inv

## .middle.squish4.huge[CONTEXT]

--

## .middle.squish4.huge.kjh-lblue[CONVENTION]

--

## .middle.squish4.huge.kjh-pink[MEANING]

---

class: center middle main-title section-title-1

# .huge.squish4[.kjh-lblue[Graphing]<br/>.kjh-yellow[in practice]]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-yellow[Workhorses]

---
layout: false

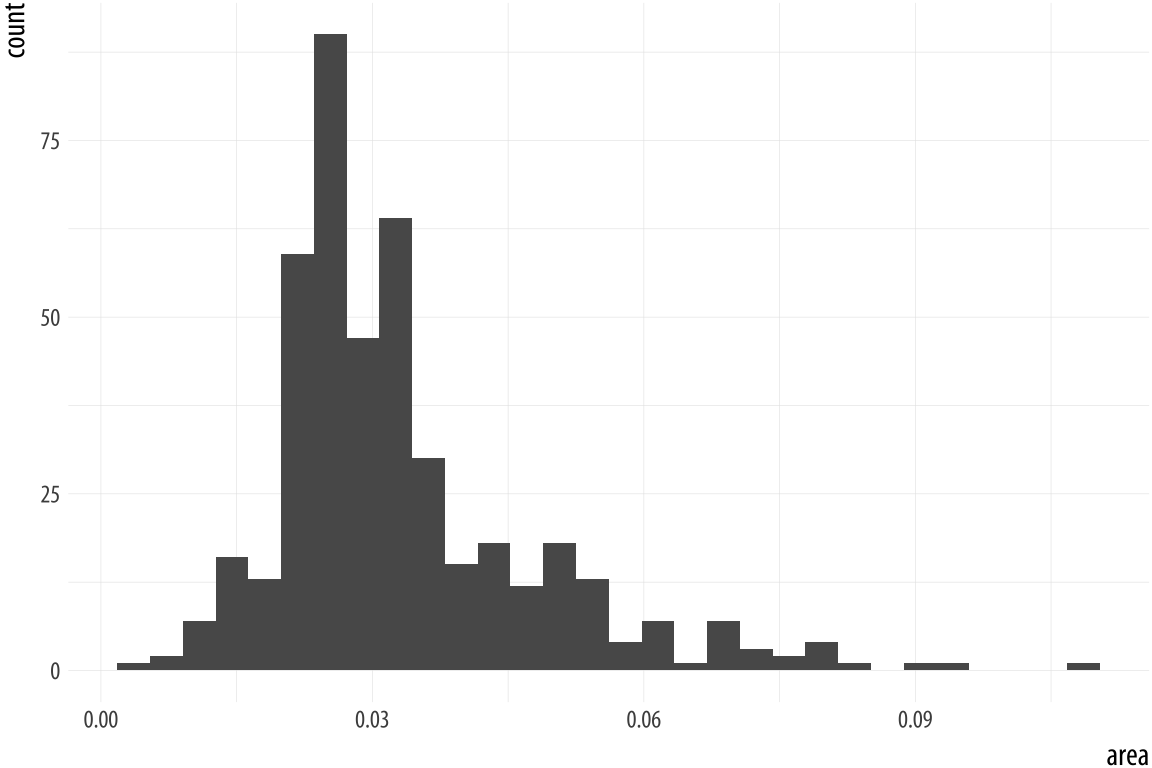

.center[![:scale 80%](img/01_workhorse_histogram.png)]

.right.w90.small[]

---
layout: false

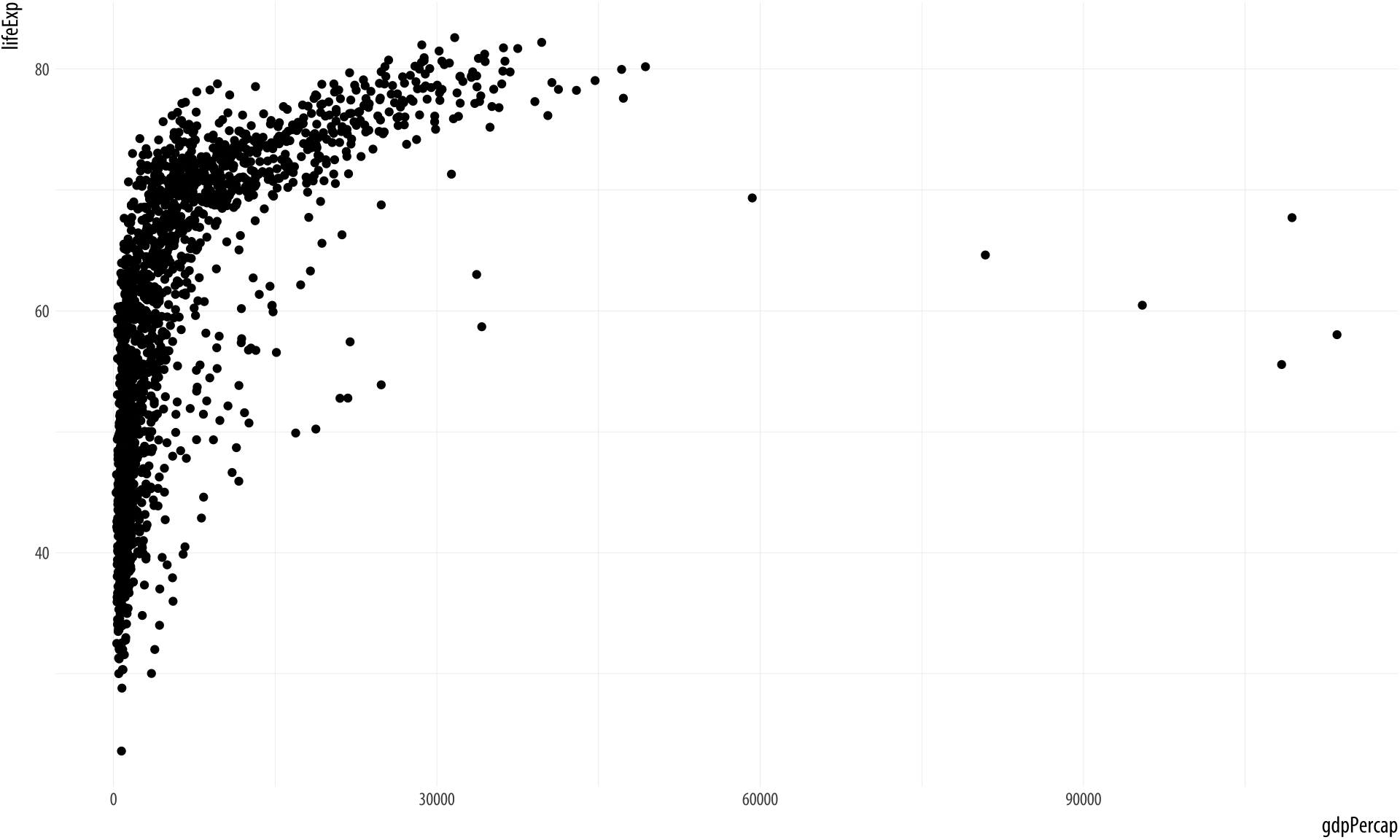

.center[![:scale 85%](img/01_workhorse_scatterplot.png)]

.right.w90.small[]

---
layout: false

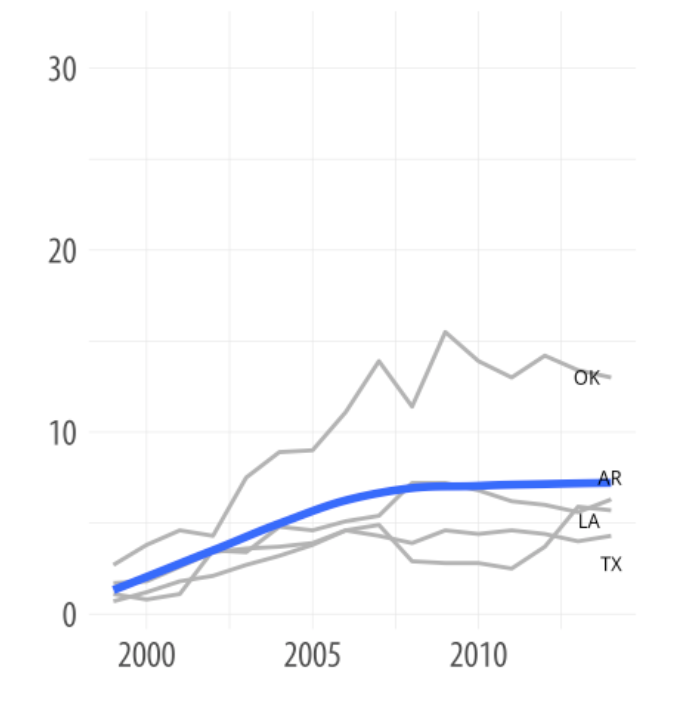

.center[![:scale 45%](img/01_workhorse_trend.png)]

.right.w90.small[]

---
layout: false

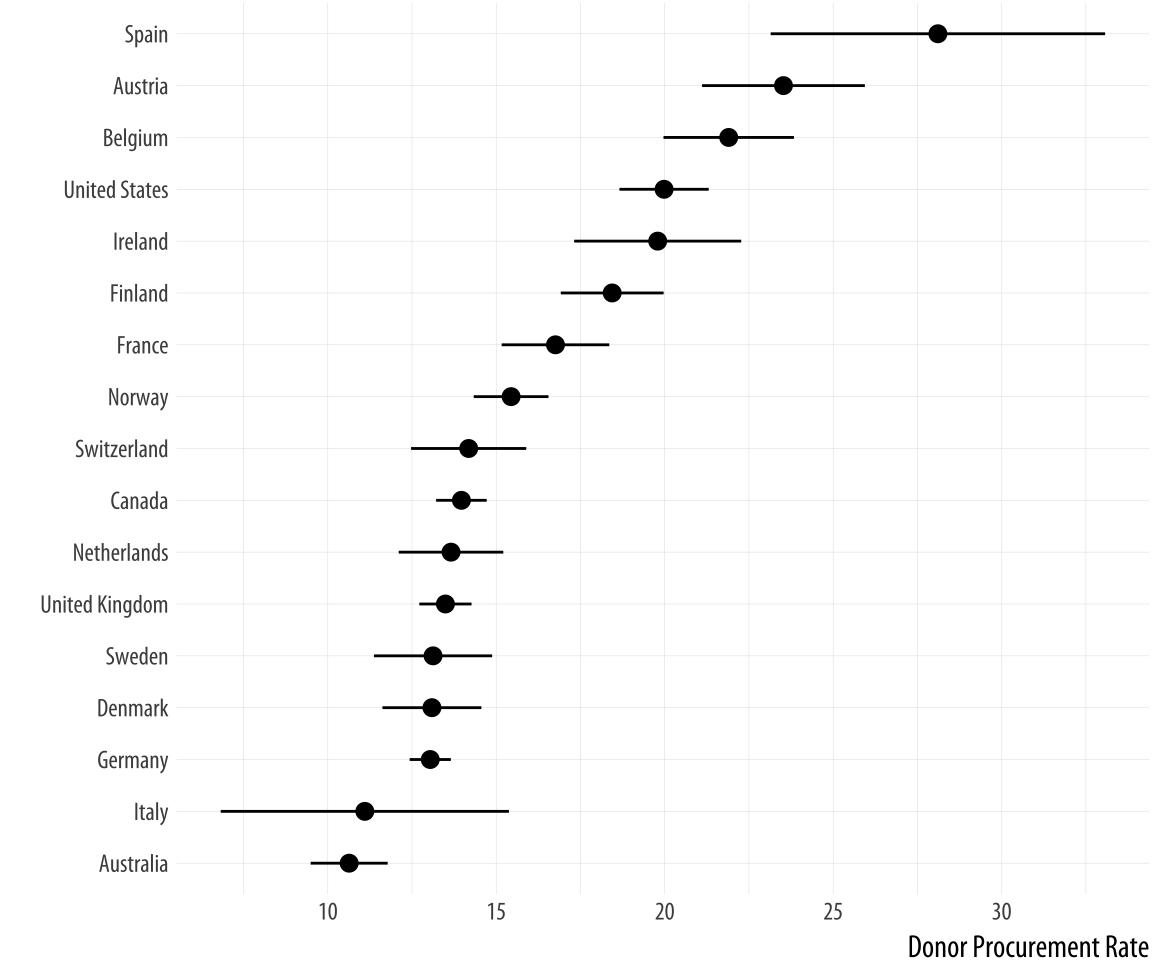

.center[![:scale 65%](img/01_workhorse_dot_range.png)]

.right.w90.small[]

---
layout: false

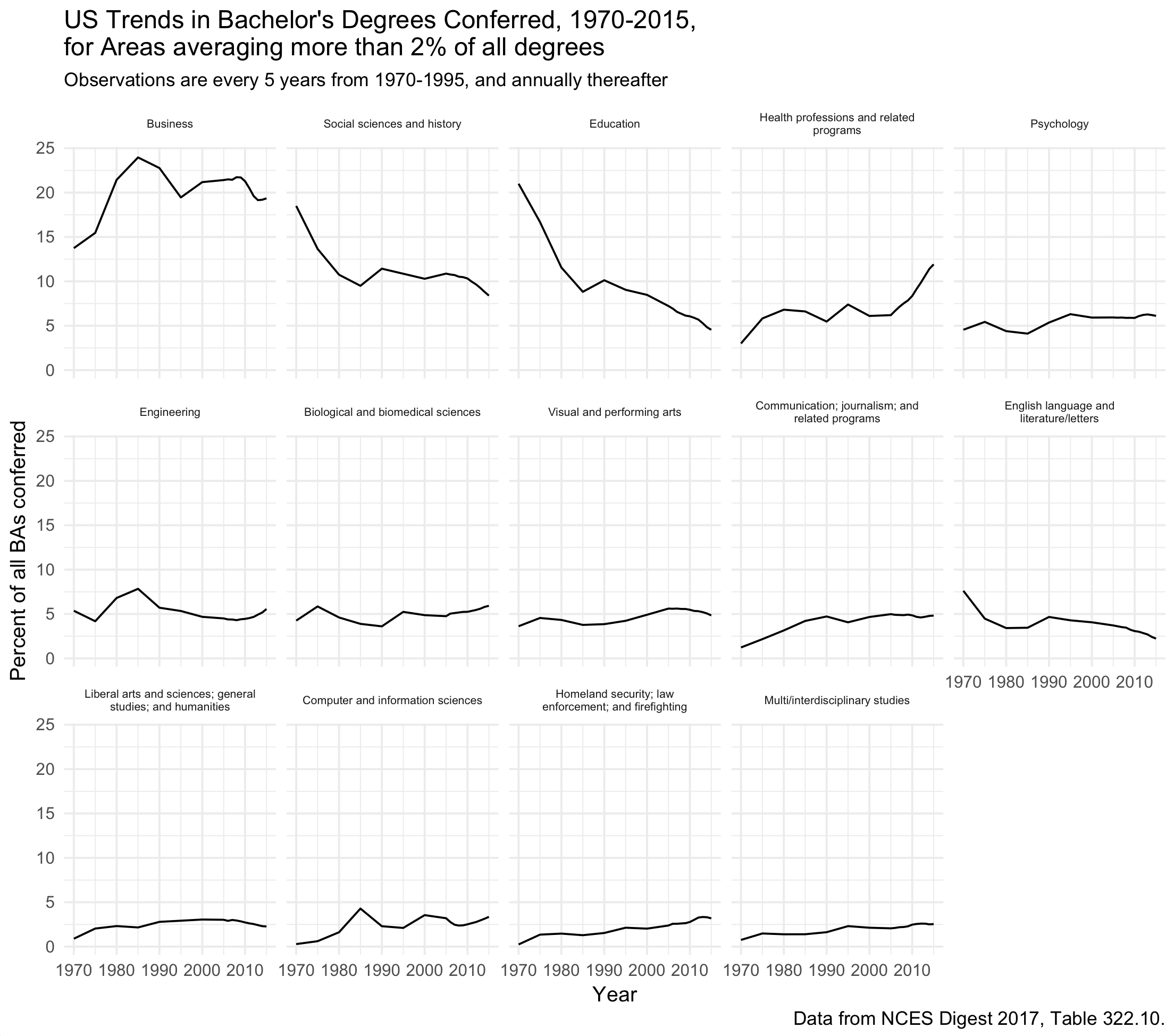

.center[![:scale 60%](img/01_workhorse_facet_row_1.png)]

.right.w90.small[]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-yellow[Show Ponies]

---
layout: false

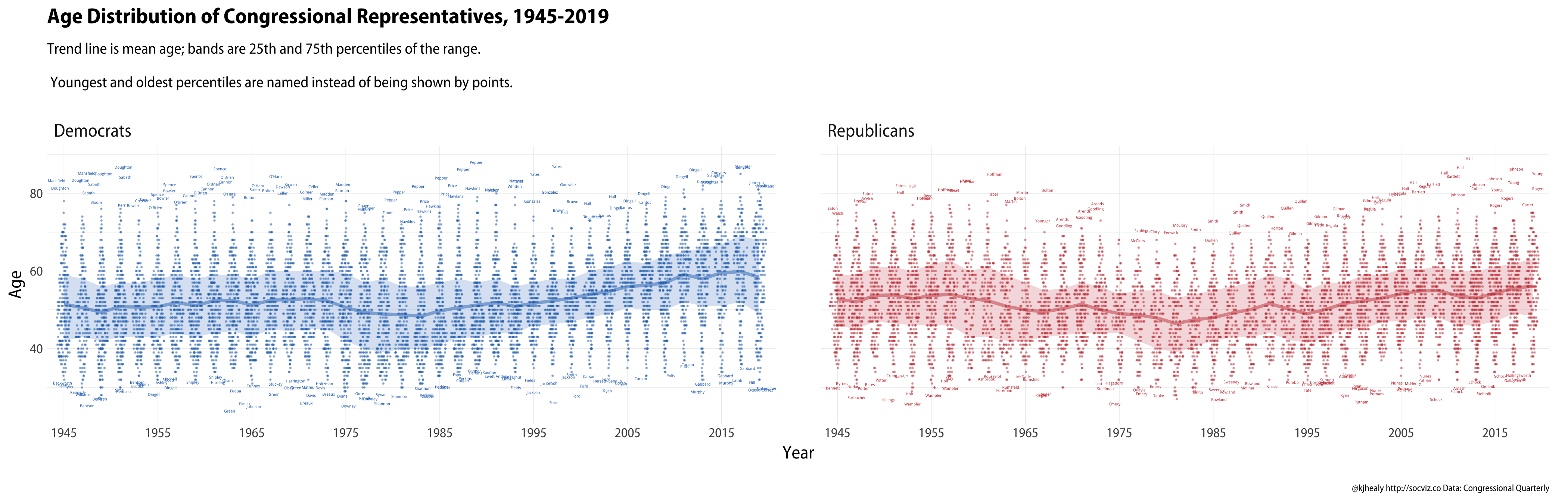

.center[![:scale 95%](img/01_show_pony_congress.png)]

.right.w90.small[]

---
layout: false

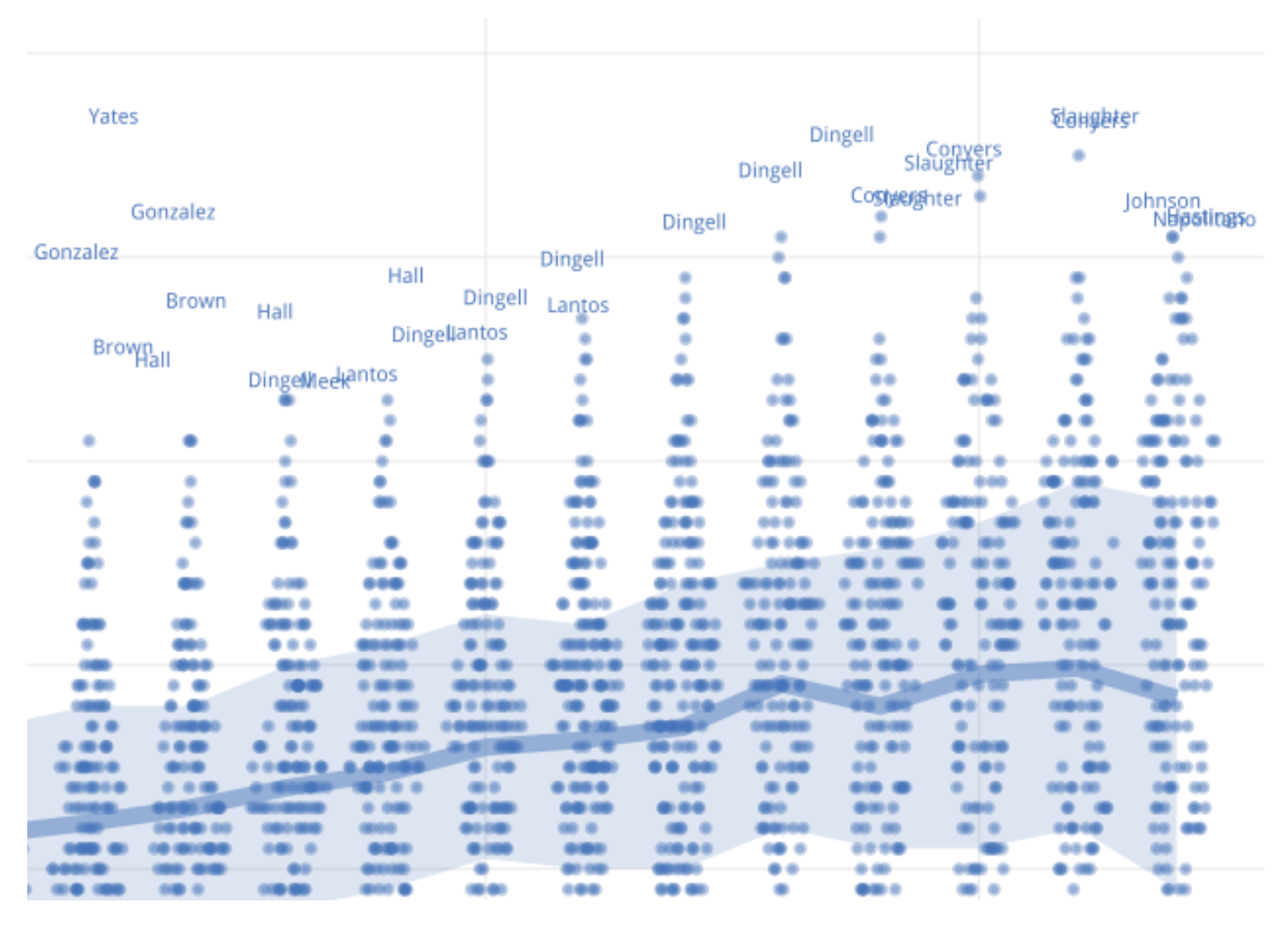

.center[![:scale 70%](img/01_show_pony_congress_zoom.png)]

.right.w90.small[]

---
layout: false

.center[![:scale 80%](img/01_show_pony_pbe_by_school_type_bee.png)]

.right.w90.small[]

---
layout: false

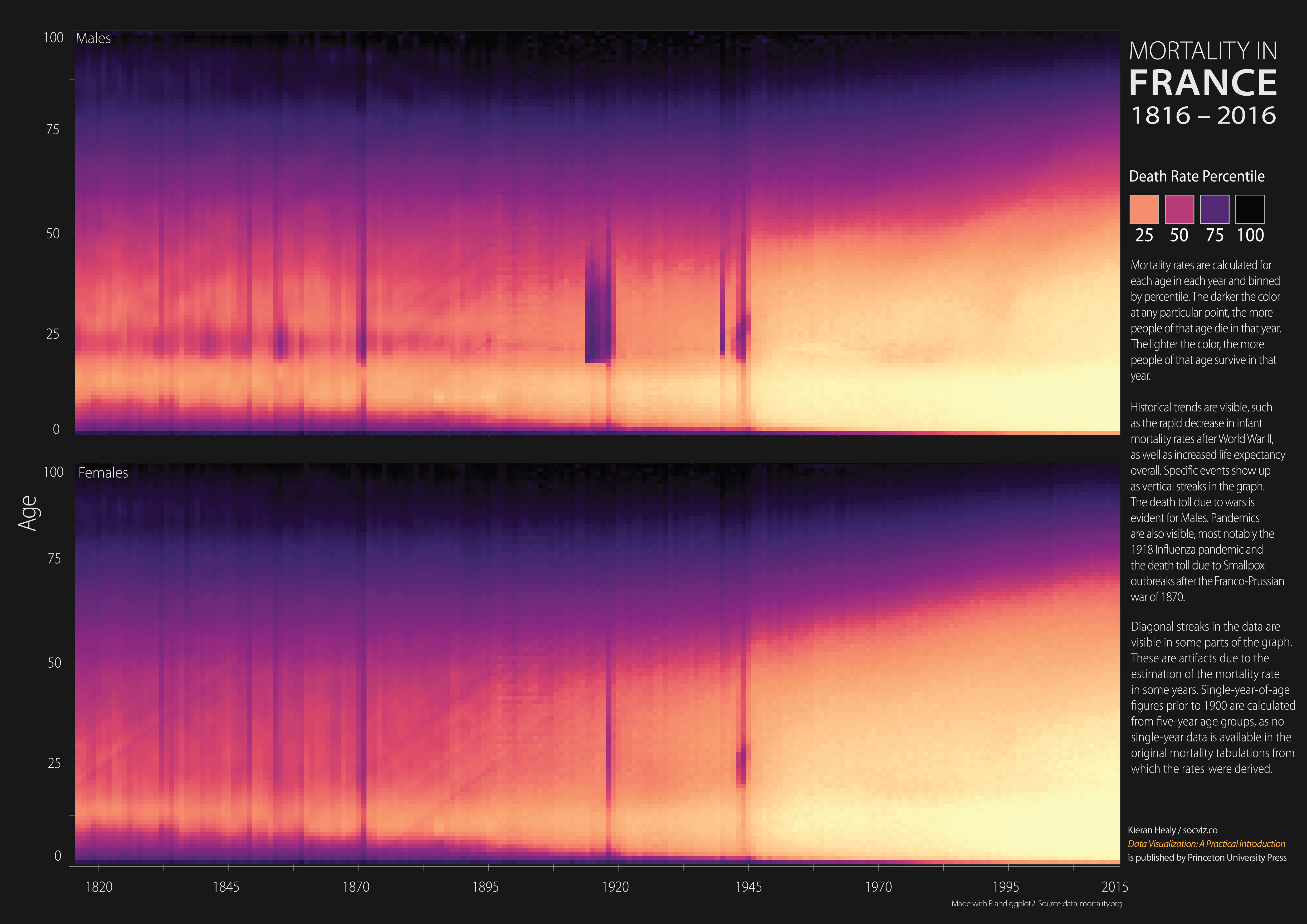

.center.middle[![:scale 77%](img/01_show_pony_france_blackposter.png)]

.right.w90.small[]

---
layout: false

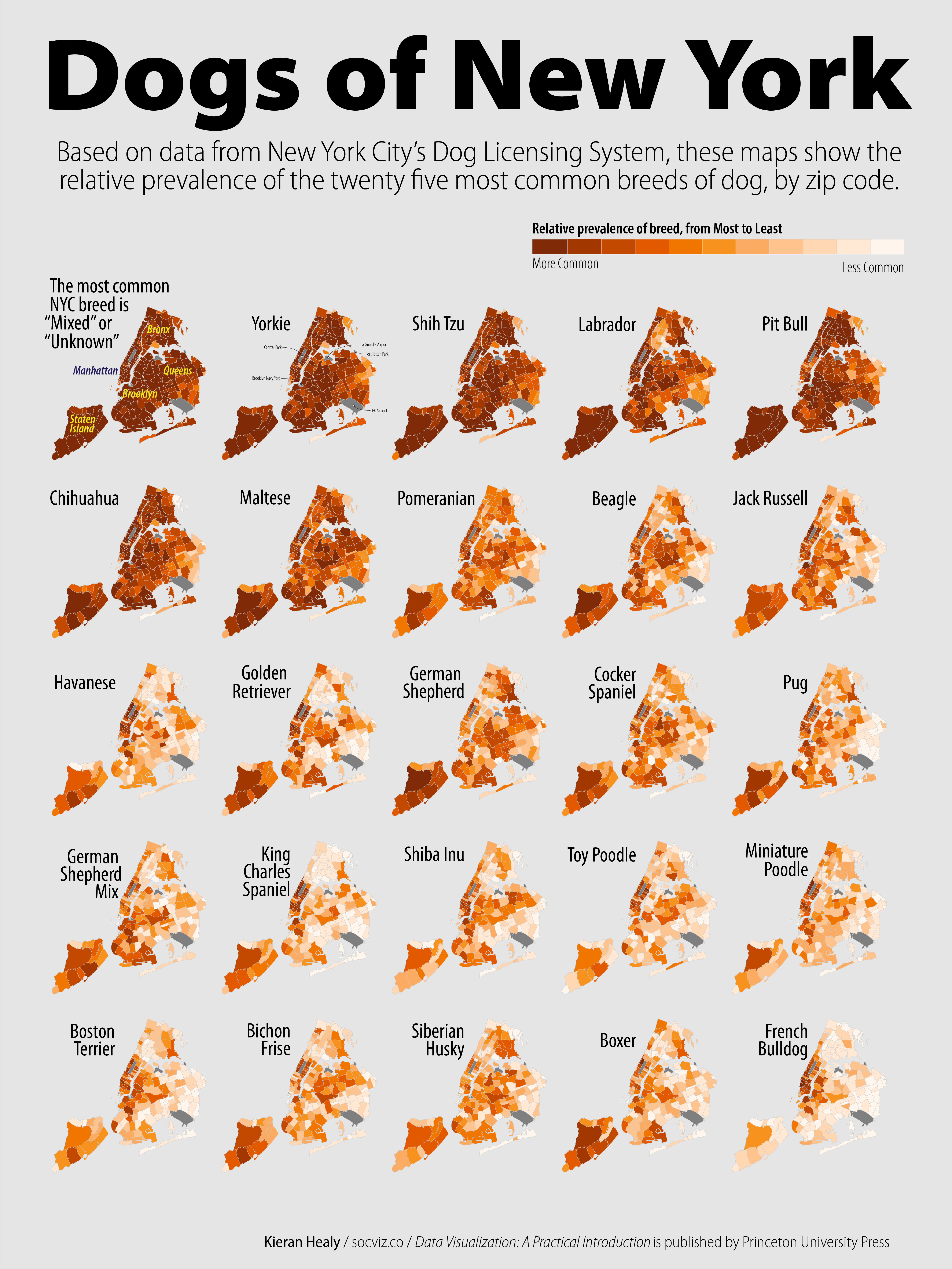

.center[![:scale 40%](img/01_breedposter_display_top25_orange.png)]

.right.w90.small[]

---

class: right bottom main-title section-title-1

## .huge.right.squish4.bottom.kjh-yellow[Unicorns …]

---
layout: false

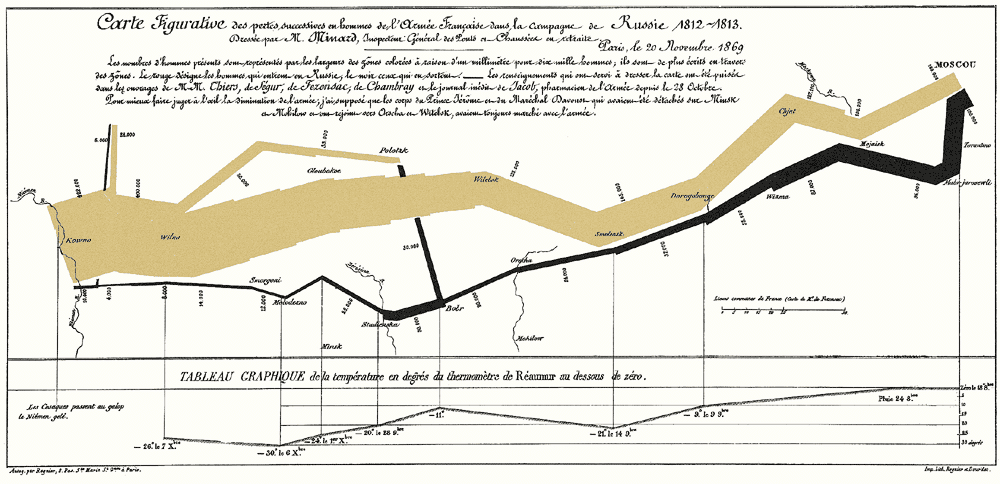

.center[![:scale 90%](img/01_unicorn_minard_lg.png)]

.right.w90.small[]

---
layout: false

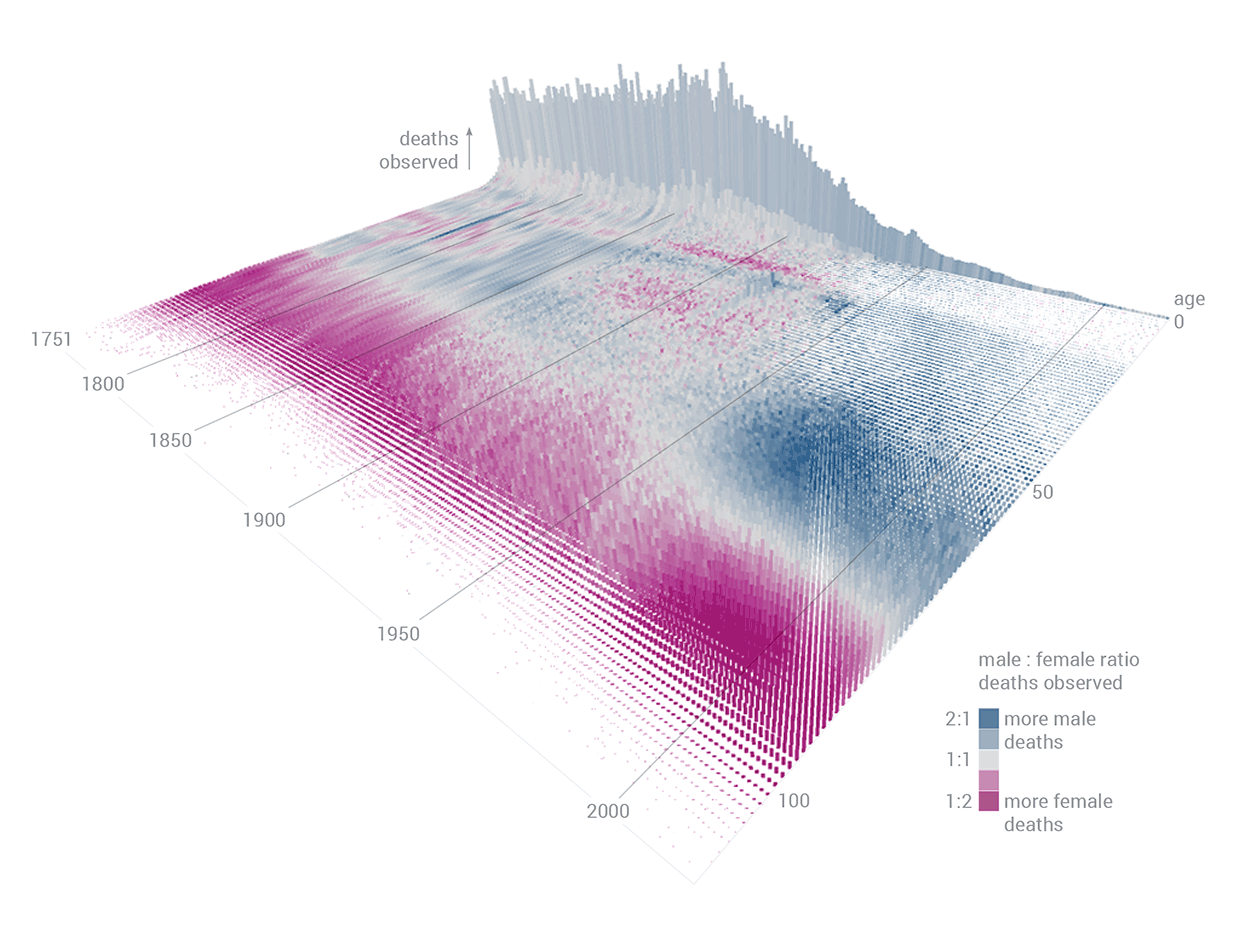

.center[![:scale 80%](img/01_unicorn_swedishmortality_mfratio.gif)]

.right.w90.small[]

---
layout: false

.center[![:scale 50%](img/01_unicorn_synteny_map_of_the_pig_and_human_genomes.png)]

.right.w90.small[… or monsters]
